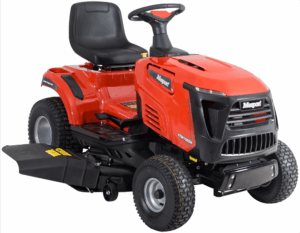

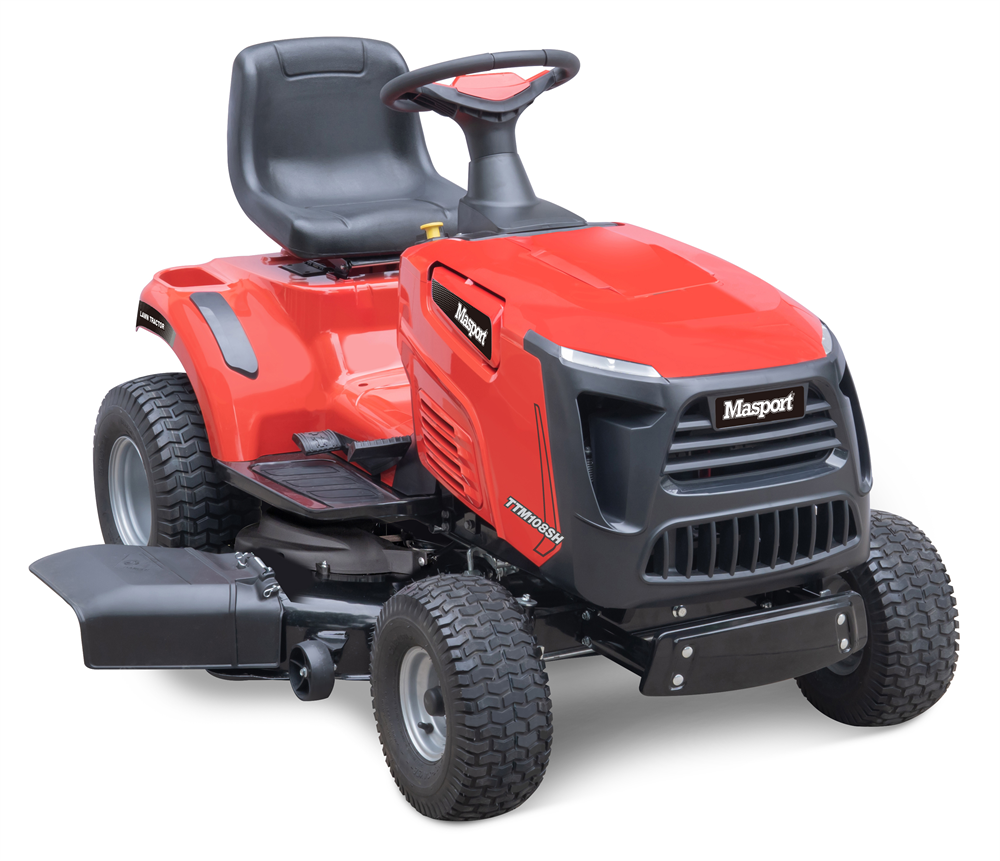

TTM108SH V-Twin

TTM108SH V-Twin

This modern looking ride on mower provides added durability and operator convenience, including; electromagnetic blade engagement, a powerful Masport V-twin engine and reliable foot operated Tuff Torq® hydrostatic transmission. The 42" deck is fitted with anti-scalp wheels that ensures a perfect finish each and every time.

  • Masport MVT500 Series 586cc V-Twin 19HP engine is powerful, balanced with low vibration and noise
  • Equipped with 42" (108cm) steel side discharging cutting deck for fast and efficient mowing
  • Alloy spindle housing keeps the bearings cooler, extending working life
  • Tuff Torq® K46 transmission provides a smooth and easy to use foot operated variable speed drive system
  • Mulch option helps reduce clean up and returns the finely cut grass as nutrients to your lawn
  • Modern LED lights allow for mowing in lower light conditions, improving visibility
  • Electromagnetic clutch allows you to engage and disengage the cutting blades simply with the pull of a switch
  • Pivoting steel front axle provides driver comfort and improved contact with the ground
  • The Reverse Mode Operation (RMO) feature allows you to mow while travelling in reverse
  • A steel front bumper provides protection for the front of the mower
  • Large 7.5L capacity fuel tank with viewing window allows for longer periods between refills
  • Front 15 x 6.00-6 and Rear 18 x 8.50-8 wheels
  • Cutting range - 7 positions 30mm-90mm cut height
  • Adjustable high back seat
  • Ergonomically positioned operator controls
  • Anti-scalp wheels
  • Park brake
  • Tow hitch
  • Machine Warranty - 2 years, plus 1 year upon registration

Specifications

  • Mulching Capable
  • Headlights
  • Parking Brake
  • Hour Meter
  • Deck Wash
  • Bumper

Specifications

  • Engine Make
  • Masport
  • Engine Model
  • MVT500
  • Fuel Tank Capacity
  • 7.5L
  • Engine Capacity
  • 19HP
  • Number of Cylinders
  • 2 Cylinders
  • Engine Oil Capacity
  • 1.7L
  • Battery Voltage (volts)
  • 12V, 18Ah
  • Electric Start – Battery Type
  • 12V, 18Ah
  • Blade Type
  • 2 blades
  • Cutting Width
  • 1080mm (42″) cutting deck
  • Cutting Height Range
  • 30 – 90mm, 7 position
  • Blade Engagement
  • Electromagnetic
  • Transmission
  • Rear – Hydrostatic Tuff Torq K46DR
  • Drive System
  • V-Belt
  • Forward Speed
  • 0-8.8km/h
  • Reverse Speed
  • 0-4.5km/h
  • Chassis Material
  • Steel
  • Deck Type
  • Side Discharge
  • Steering System
  • Rack & pinion
  • Turning Radius
  • 45cm
  • Seat Type
  • Adjustable with high back
  • Deck Lift
  • Manual
  • Deck Fabrication
  • Steel
  • Wheel Base Size
  • 1170mm
  • Front Tyres Size
  • 15″ x 6.0 – 6
  • Rear Tyres Size
  • 18″ x 8.5 – 8
  • Accessories
  • Mulch Plug Included
  • Weight
  • 174.5kg
  • Product Dimensions (W x H x L)
  • 1316mm x 1109mm x 1694mm
Call Us or E-mail Us for prices and to purchase
