TTM98SH
TTM98SH
TTM98SH

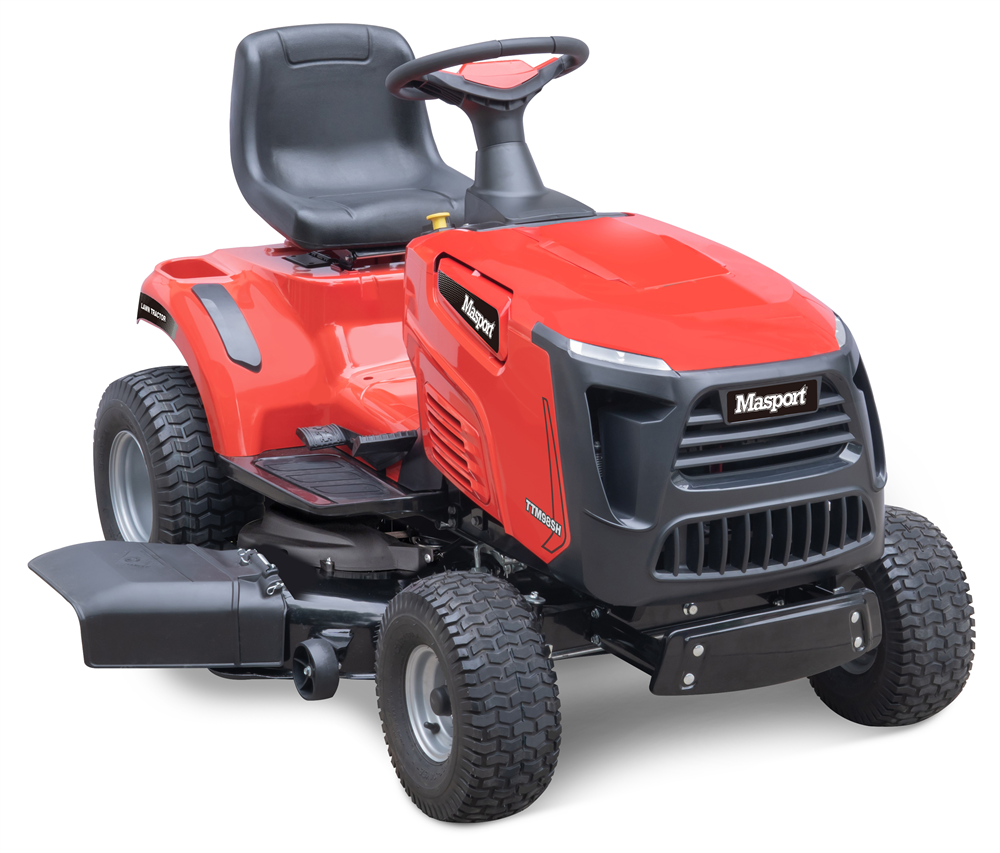

This modern looking ride on mower provides added durability and operator convenience, including; electromagnetic blade engagement, a powerful Masport engine and reliable foot operated Tuff Torq® hydrostatic transmission. The 38" deck is fitted with anti-scalp wheels that ensures a perfect finish each and every time.
- Features
- Masport M400 Series 452cc single cylinder 15HP engine with low vibration and noise
- Equipped with 38" (98cm) steel side discharging cutting deck for fast and efficient mowing
- Alloy spindle housing keeps the bearings cooler, extending working life
- Tuff Torq® K46 transmission provides a smooth and easy to use foot operated variable speed drive system
- Mulch option helps reduce clean up and returns the finely cut grass as nutrients to your lawn
- Modern LED lights allow for mowing in lower light conditions, improving visibility
- Electromagnetic clutch allows you to engage and disengage the cutting blades simply with the pull of a switch
- Pivoting steel front axle provides driver comfort and improved contact with the ground
- The Reverse Mode Operation (RMO) feature allows you to mow while travelling in reverse
- A steel front bumper provides protection for the front of the mower
- A large 7.5L translucent fuel tank provides both fuel level visibility and longer runtime between refueling
- Front 15 x 6.00-6 and Rear 18 x 8.50-8 wheels
- Cutting range - 7 positions 30mm-90mm cut height
- Adjustable high back seat
- Ergonomically positioned operator controls
- Deck wash allows for easy cleaning of loose grass from the cutting deck
- Anti-scalp wheels
- Park brake
- Tow hitch
- Suitable for domestic lawns up to 5,000 m² on flat to gentle slopes
- Machine Warranty - 2 years, plus 1 year upon registration
Specifications
- Specifications
Engine
Engine MakeMasportEngine ModelM400 Single CylinderFuel Tank Capacity7.5LEngine Capacity15HPNumber of Cylinders1 CylinderEngine Oil Capacity1.2LBattery
Battery Voltage (volts)12V, 18AhElectric Start – Battery Type12V, 18AhCutting
Blade Type2 bladesCutting Width98cm (38″)Cutting Height Range30 – 90mm, 7 positionBlade EngagementElectromagneticDrive
TransmissionRear – Hydrostatic Tuff Torq K46DRDrive SystemV-BeltForward Speed0-8.8km/hReverse Speed0-4.5km/hChassis / Deck
Chassis MaterialSteelDeck TypeSide DischargeSteering SystemRack & pinionTurning Radius45cmSeat TypeAdjustable with high backDeck LiftManualDeck FabricationSteelWheels
Wheel Base Size1170mmFront Tyres Size15″ x 6.0 – 6Rear Tyres Size18″ x 8.5 – 8AccessoriesMulch Plug IncludedWeight168.5kgProduct Dimensions (W x H x L)1210mm x 1110mm x 1695mm
