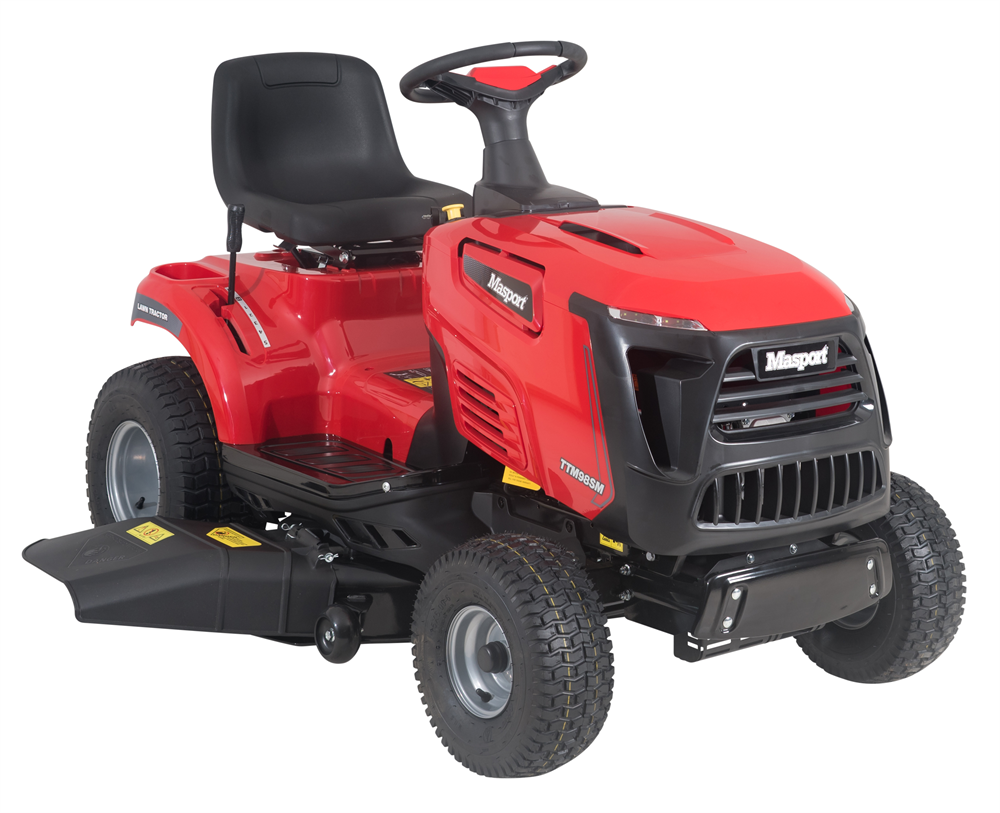

This practical ride on mower delivers dependable performance and easy operation. Featuring electromagnetic blade engagement, a powerful 12HP Masport engine, and a 5 speed manual transmission for optimal speed control. The 38" cutting deck, equipped with anti-scalp wheels, ensures a neat and tidy finish every time.
  • Features
    • Masport M400 Series 432cc single cylinder 12HP engine with low vibration and noise

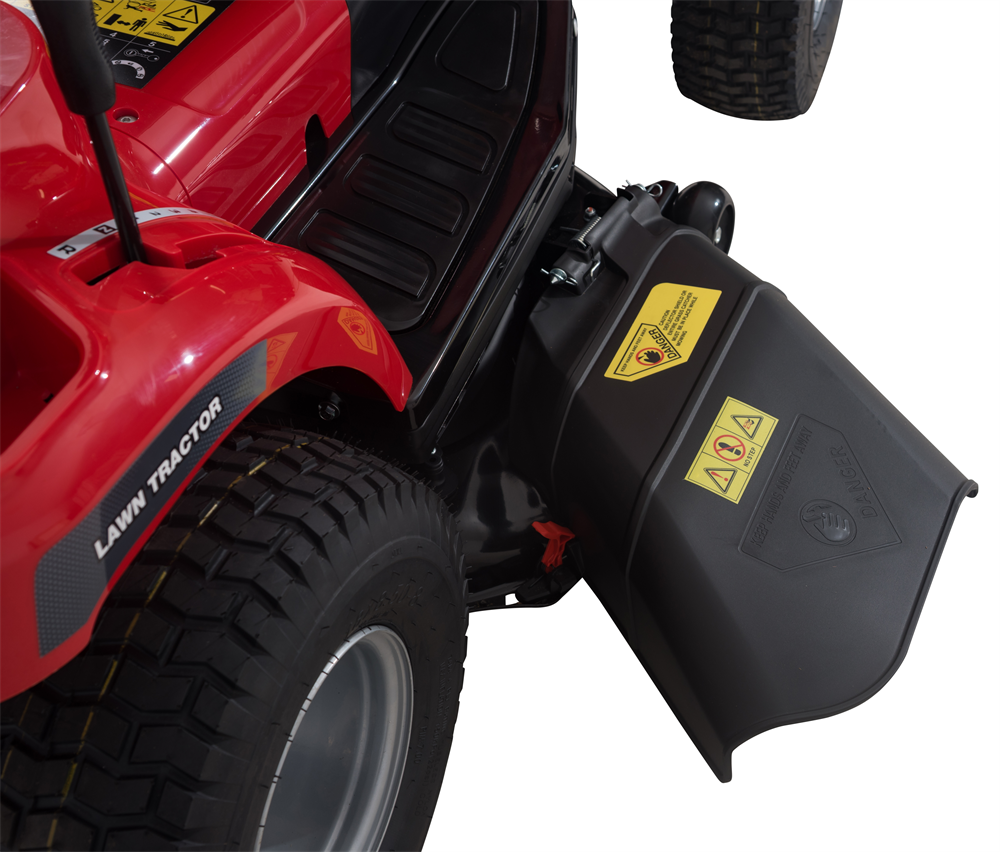

    • Equipped with 38" (98cm) steel side discharging cutting deck for fast and efficient mowing
    • Alloy spindle housing keeps the bearings cooler, extending working life
    • 5-Speed manual transmission
    • Mulch option helps reduce clean up and returns the finely cut grass as nutrients to your lawn

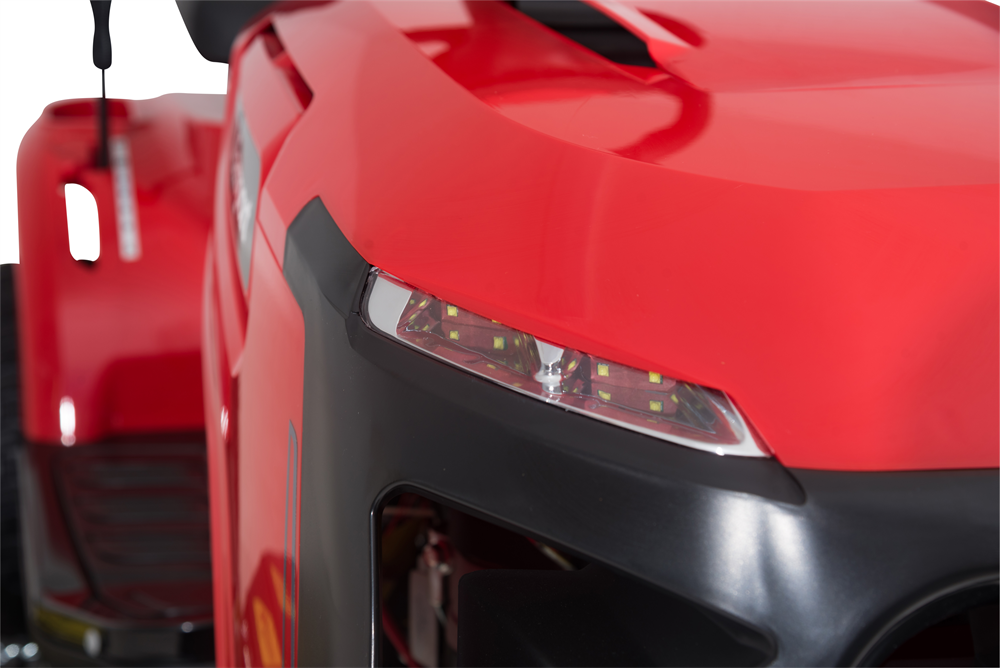

    • Modern LED lights allow for mowing in lower light conditions, improving visibility
    • Electromagnetic clutch allows you to engage and disengage the cutting blades simply with the pull of a switch
    • Pivoting steel front axle provides driver comfort and improved contact with the ground
    • The Reverse Mode Operation (RMO) feature allows you to mow while travelling in reverse

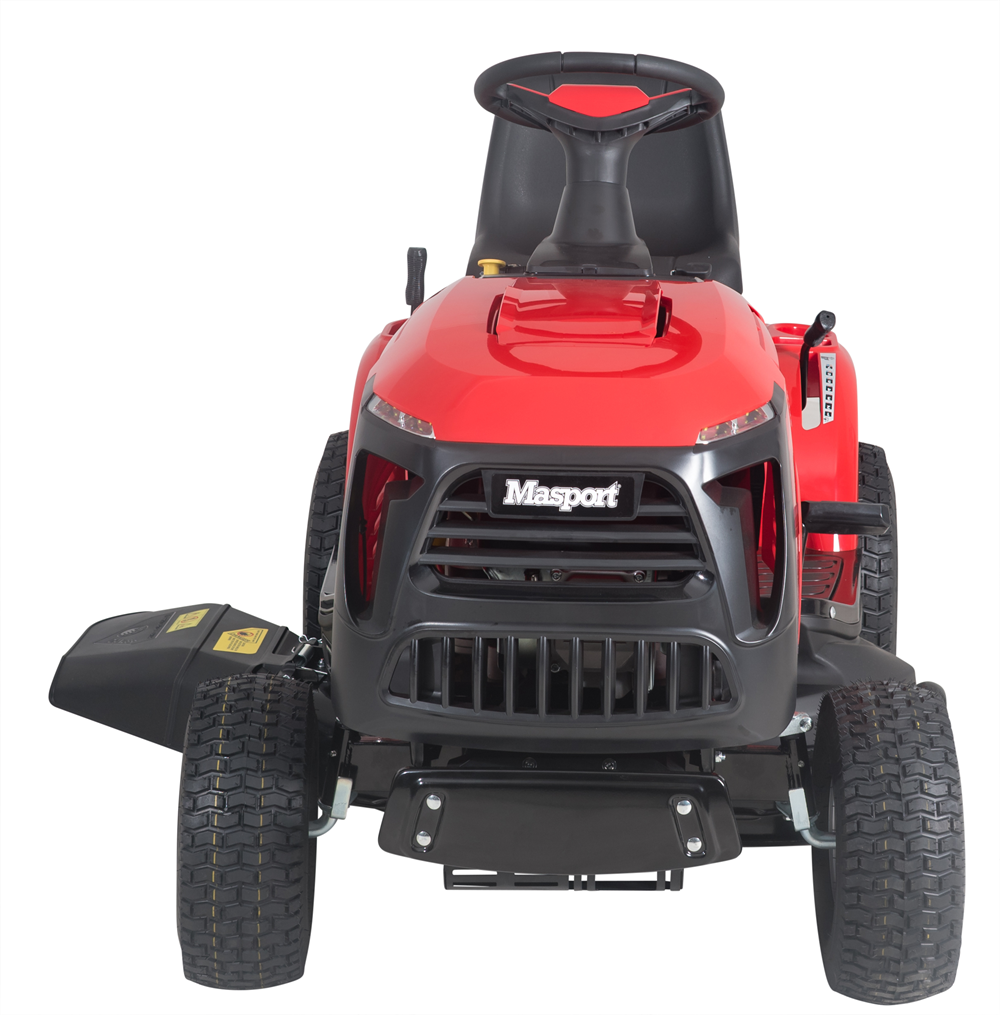

    • A steel front bumper provides protection for the front of the mower

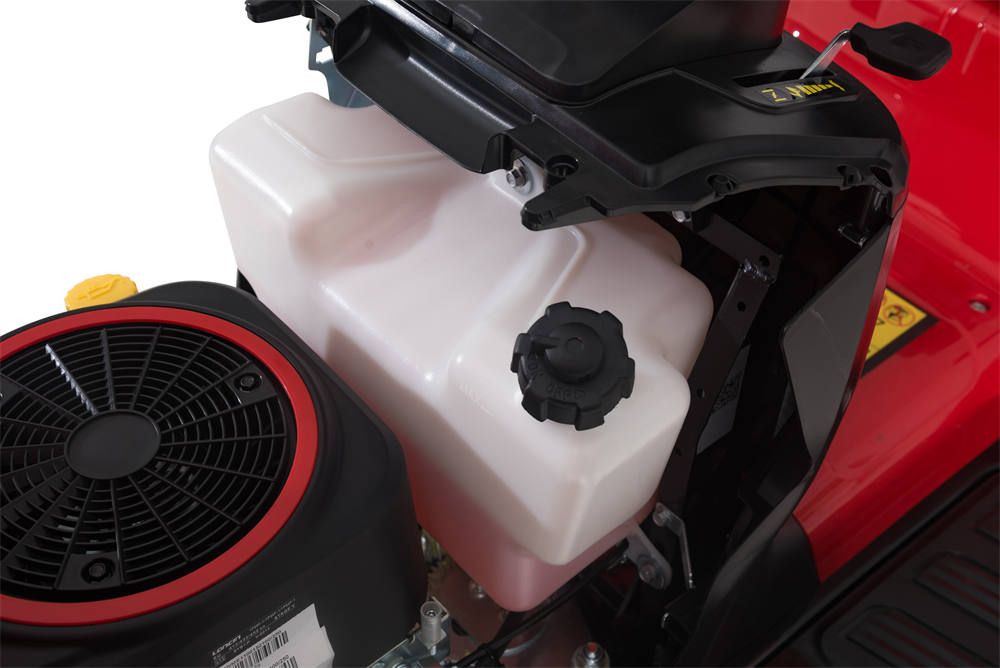

    • A large 7.5L translucent fuel tank provides both fuel level visibility and longer runtime between refueling
    • Front 15 x 6.00-6 and Rear 18 x 8.50-8 wheels
    • Cutting range - 7 positions 30mm-90mm cut height
    • Adjustable high back seat
    • Ergonomically positioned operator controls
    • Anti-scalp wheels
    • Park brake
    • Tow hitch
    • Suitable for domestic lawns up to 5,000m² on flat to gentle slopes
    • Machine Warranty - 2 years, plus 1 year upon registration

Specifications

  • Specifications

    Engine

    Engine MakeMasport
    Engine ModelM400 Single Cylinder
    Fuel Tank Capacity7.5L
    Engine Capacity12HP
    Number of Cylinders1 Cylinder
    Engine Oil Capacity1.2L

    Battery

    Battery Voltage (volts)12V, 18Ah
    Electric Start – Battery Type12V, 18Ah

    Cutting

    Blade Type2 blades
    Cutting Width98cm (38″)
    Cutting Height Range30 – 90mm, 7 position
    Blade EngagementElectromagnetic

    Drive

    Transmission5-Speed manual
    Drive SystemV-Belt
    Forward Speed0-7.5km/h
    Reverse Speed0-2.5km/h

    Chassis / Deck

    Chassis MaterialSteel
    Deck TypeSide Discharge
    Steering SystemRack & pinion
    Turning Radius45cm
    Seat TypeAdjustable with high back
    Deck LiftManual
    Deck FabricationSteel

    Wheels

    Wheel Base Size1170mm
    Front Tyres Size15″ x 6.0 – 6
    Rear Tyres Size18″ x 8.5 – 8
    AccessoriesMulch Plug Included
    Weight169.5kg
    Product Dimensions (W x H x L)1210mm x 1110mm x 1695mm
Call Us or E-mail Us for prices and to purchase
