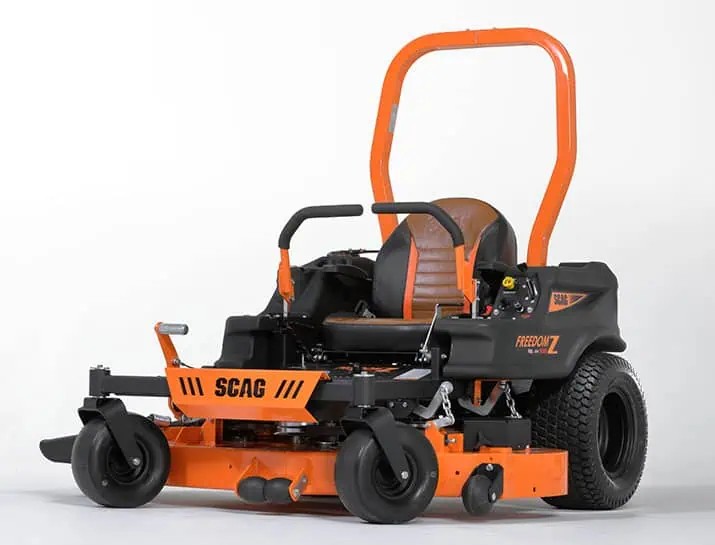

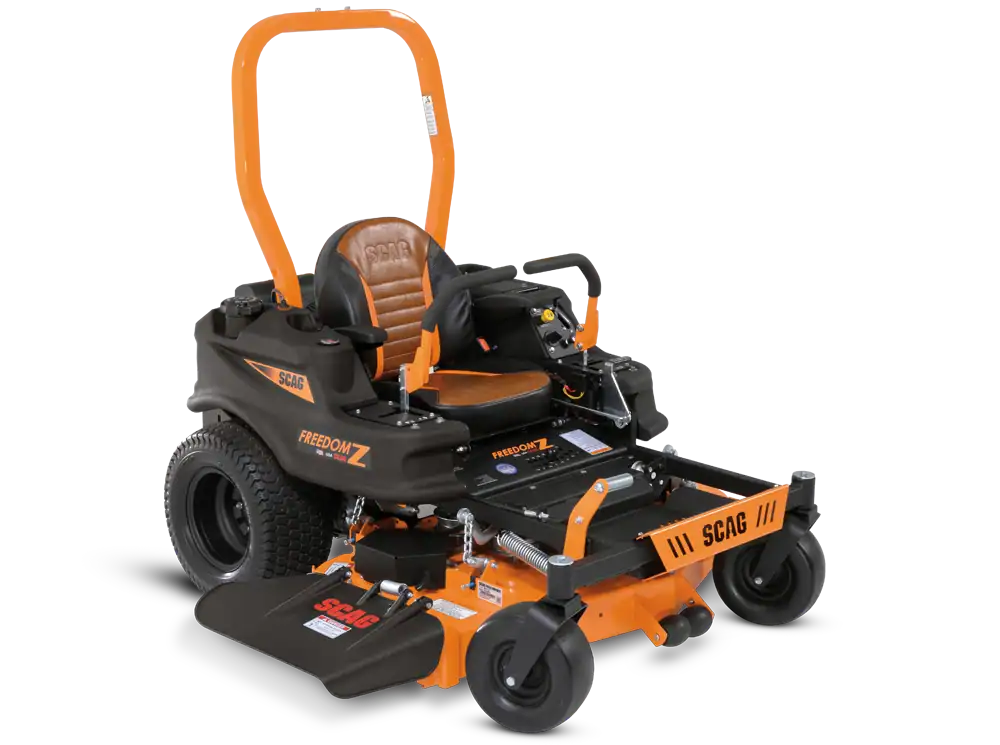

FREEDOM Z 52″

FREEDOM Z 52″

Freedom Z

FOR PROS & PROS AT HOME

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

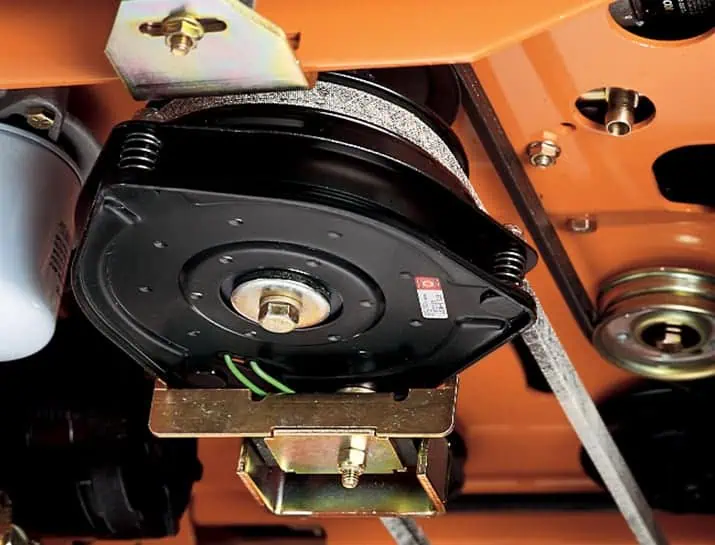

  • The Ogura GT1 PTO Clutch Brake provides excellent starting an stopping power for your cutting deck, 74 ft.ib. of holding strength, and an adjustable air gap for long life

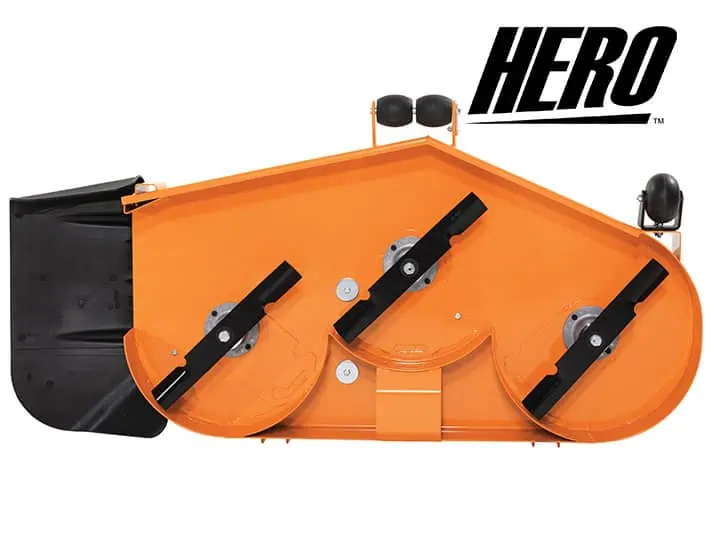

  • Heavy duty Hero Cutter Deck design handles lots of grass at higher speeds.heavy-duty,aluminum,sealed balled bearing, blade-drive spindles provide reliable proformance season after season.
  • Tubular steel main frame delivers unmatched strengh and longevity.
  • The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth,solid power to drive wheels.Large cooling fans keep temperatures low and extend component life

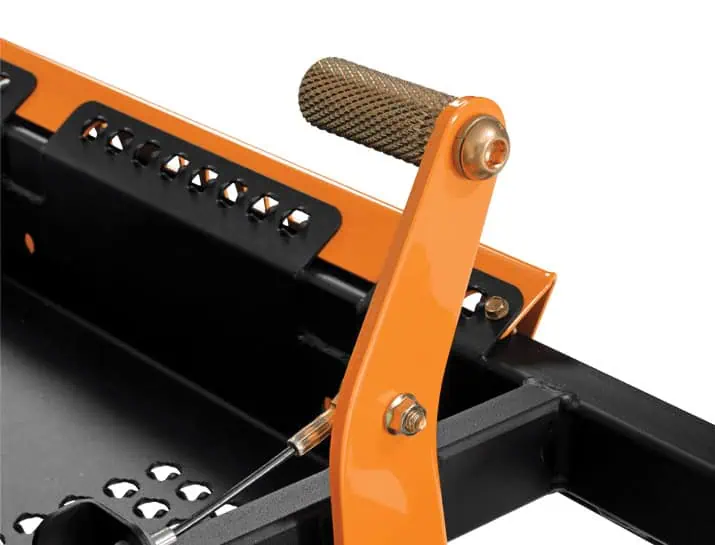

  • Foot-pedal cutter-deck lift is sppring-assisted and makes raising the cutter deck smooth and easy

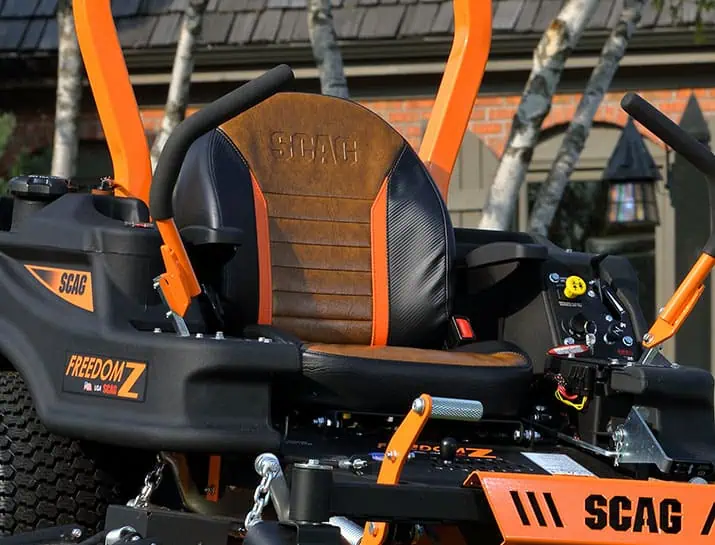

  • The ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests
  • The ROPS provides a protective zone around the operator,reducing the risk of serios injury or fatality during a rollover incident. When used in conjustion with a seat belt, it ensures the operator remains within the protective zone.

Specifications

Engine Brand
Engine Model
Horsepower
Displacement
Fuel Tank Capacity 24.5 Litres
Productivity, acres/day 20.2
Tyre Sizes 11″ x 6″ x 5″ Front Neumatic
20″ x 10″ x 10″ Rear
Seat Padded with arm rests, adjustment forward and back (tools required)
ROPS Standard, Fixed
Waranty Period 5-YR Residential
2-YR Commercial
DRIVE SYSTEM
Type TUFF TORQ TZ450
Internal Pumps 10 cc
Internal Motor 16 cc
Forward Speed 12.8 km/h
Reverse Speed 8 km/h
Parking Brake HAND LEVER ACTIVATED linkage to brakes on both rear wheels
CUTTER DECK
Type Hero Deck
Construction Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles Aluminum housing with sealed ball bearings.
Cutting Width 52″ / 132 cm
Cutting Height Adjustment 1.5″ to 4.5″ in .25″ increments
Deck Lift Foot-operated pedal
Blades 3 x 18″
Clutch / Blade Engagement ORGUA GT1 (74FT LB)
Adjustable Air Gap
Discharge Opening Side-discharge
PRODUCT DIMENSIONS (approximate)
Length 73″ / 185.42 cm
Width (chute down) 64.5″ / 163.83 cm
Width (chute in transport position) 53″ / 134.62 cm
Height 60″ / 152.4 cm
Weight 346 kg
Call Us or E-mail Us for prices and to purchase
