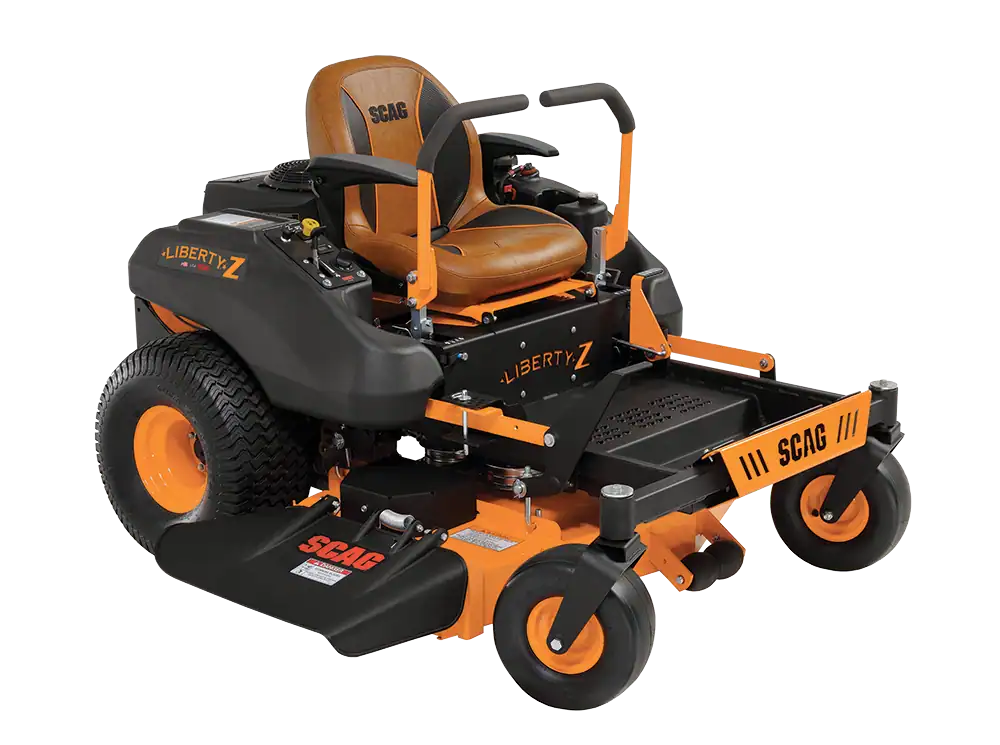

LIBERTY Z 48″

Sale!

LIBERTY Z 48″

Liberty Z

COME HOME TO THE BEST.

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

  • The Ogura GT1 PTO Clutch Brake provides excellent starting an stopping power for your cutting deck, 74 ft.ib. of holding strength, and an adjustable air gap for long life
  • Heavy duty Hero Cutter Deck design handles lots of grass at higher speeds.heavy-duty,aluminum,sealed balled bearing, blade-drive spindles provide reliable proformance season after season.
  • Tubular steel main frame delivers unmatched strengh and longevity.
  • Fewer grease points increase operator convenience and ease-of-owership.
  • The Liberty Z features proven, dual hydro transaxles for smoth,solid power to the drive wheels. TUFF TORQ TZ450 transaxles
  • Foot-pedal cutter-deck lift is sppring-assisted and makes raising the cutter deck smooth and easy
  • The ultra-comfortable and adjustable (with tools) and contoured for improved comfort, Armrests are included

Specifications

Engine Brand Kawasaki
Engine Model FR651V
Horsepower 21 hp
Displacement 726 cc
Fuel Tank Capacity 20 Litres
Productivity, acres/day 18.6
Tyre Sizes 20′ x 10′ x 10′ Rear
11′ x 6′ x 5″ Front
Inflateable
Seat PADDED SEAT, WITH ARM REST adjustable forward and back with tools
ROPS N/A
Waranty Period 5-YR Residential
2-YR Commercial
DRIVE SYSTEM
Type TUFF TORQ TZ450
Internal Pumps 10 cc
Internal Motor 10 cc
Forward Speed 11.3 km/h
Reverse Speed 8 km/h
Parking Brake HAND LEVER ACTIVATED linkage to brakes on both rear wheels
CUTTER DECK
Type Hero Deck
Construction Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles Aluminum housing with sealed ball bearings.
Cutting Width 48″ / 122 cm
Cutting Height Adjustment 1.5″ to 4.5″ in .25″ increments
Deck Lift Foot-operated pedal
Blades 3x 16.5″
Clutch / Blade Engagement ORGUA GT1 (74FT LB)
Adjustable Air Gap
Discharge Opening Side-discharge
PRODUCT DIMENSIONS (approximate)
Length 67.5″ / 171.45 cm
Width (chute down) 60.5″ / 153.67 cm
Width (chute in transport position) 49″ / 124.46 cm
Height 41″ / 104.14 cm
Weight 278 kg



Call Us or E-mail Us for prices and to purchase
