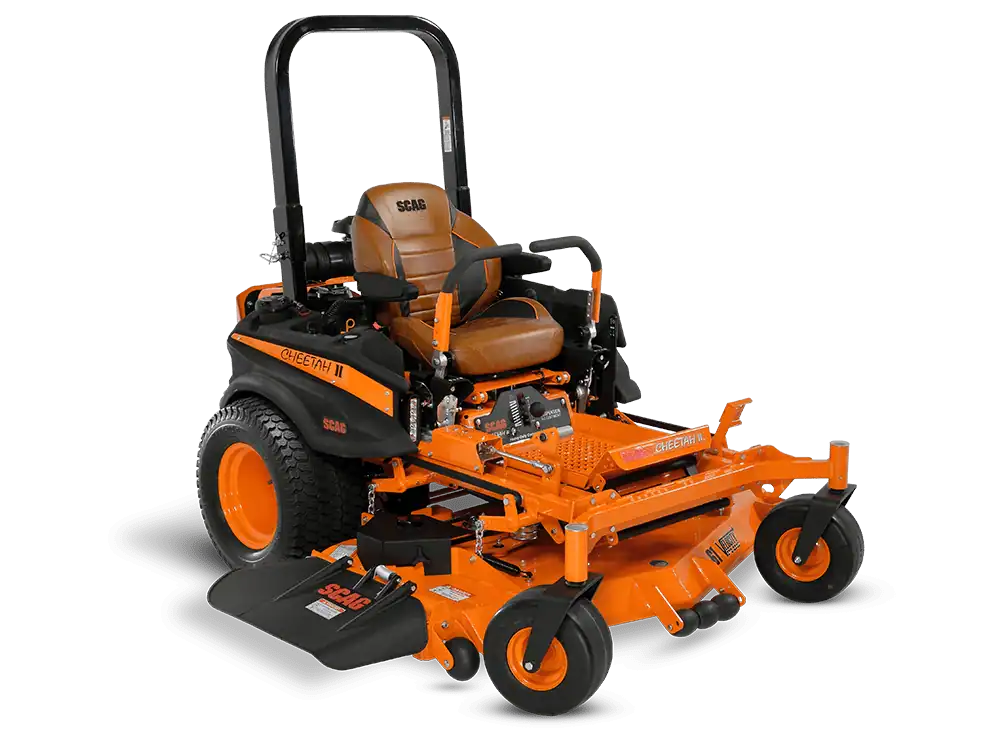

CHEETAH II 61″ Rear Discharge Kawasaki

Cheetah II

OUTCLASS. OUTPERFORM. OUTRUN.

In your world, it pays to become more swift, agile and powerful. Make it a reality with the quick and precise Cheetah II™, a machine that devours jobs at a pace you’ve only dreamed of while delivering an unmatched quality-of-cut and incredibly smooth ride. With the Cheetah II, you’ll never be caught from behind.

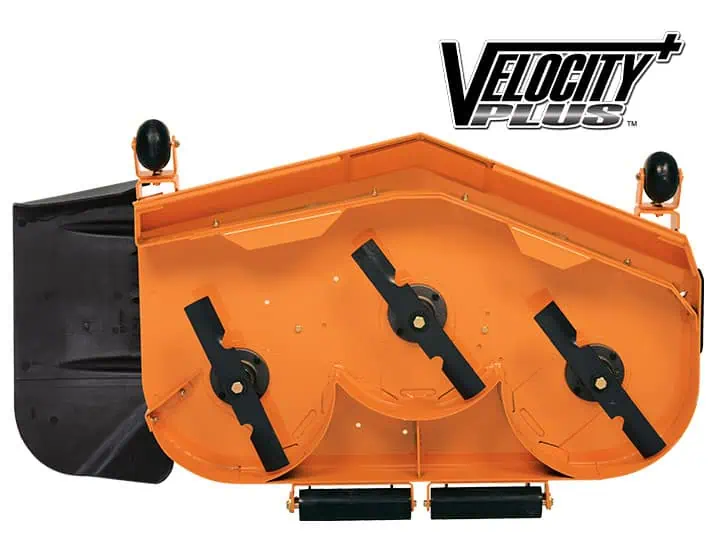

  • The envy of the industry, Velocity Plus Decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring papered roller bearings and a top-mounted grease fitting with a relief valve to prevent over greasing.

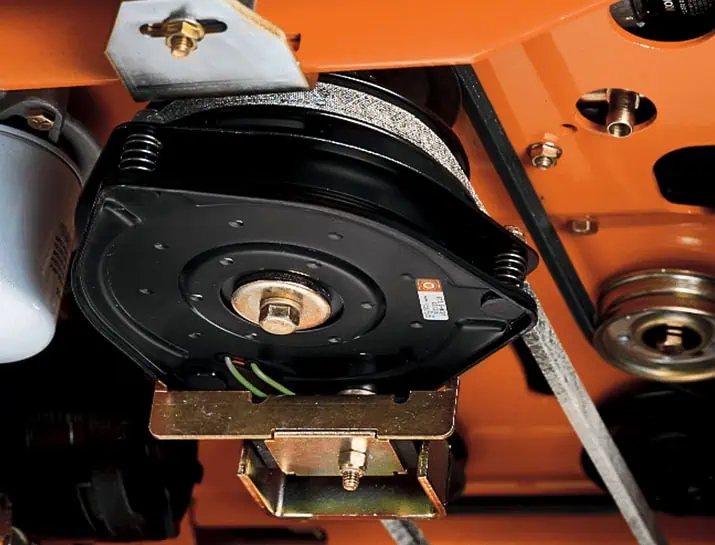

  • The Ogura GT5 PTO Clutch Brake provides excellent starting an stopping power for your cutting deck, 350 ft.ib. of holding strength, and an adjustable air gap for long life
  • Heavy-duty. single-tube,steel main-frame construction delivers superior strengh and ensures years of trouble-free service. It has a wide mower stance and extra-low centre of gravity for uliThe front caster-wheel weldents are replaceable.
  • Two-speed ZT-5400 transaxle lets you choose either Low Range to travel up to 19km/h or High Range for up to 25km/h.Internal 16cc pumps and 21cc motors help provide speed,power and torque.The transaxle's design greatly reduces hoses and possible leak points

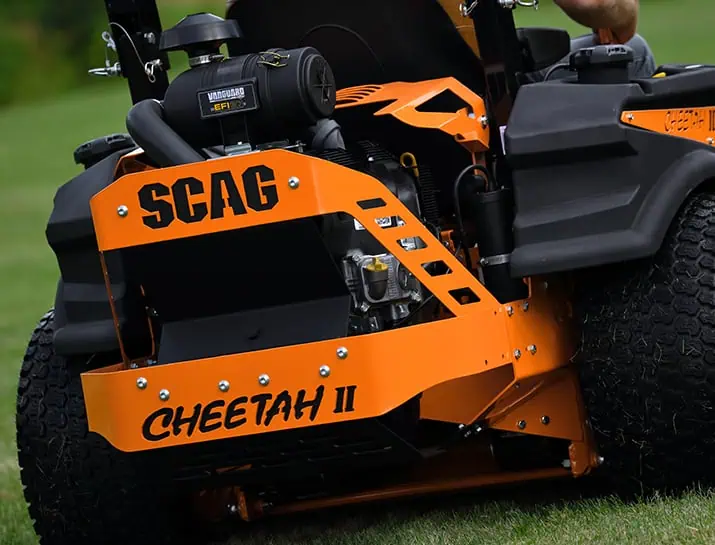

  • Flip up access panels,an unrestricted engine compartment,easy-to-reach grease Zerks and many more features make servicing the Cheeta simple, so you can be in the shop less and on the job more.

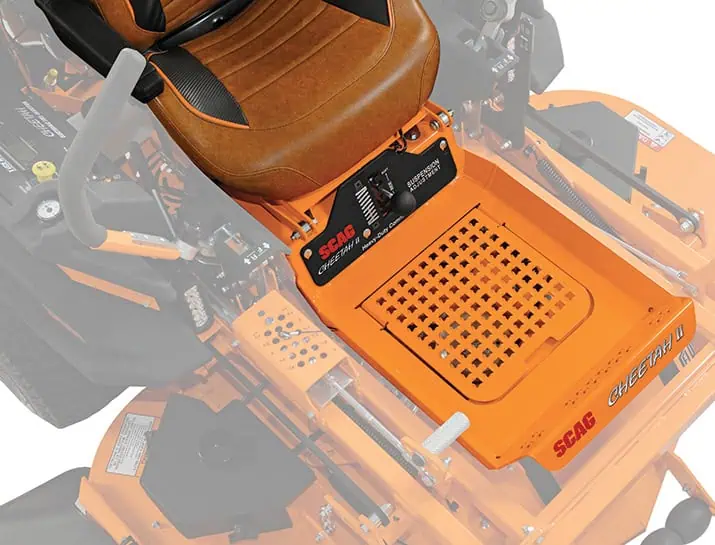

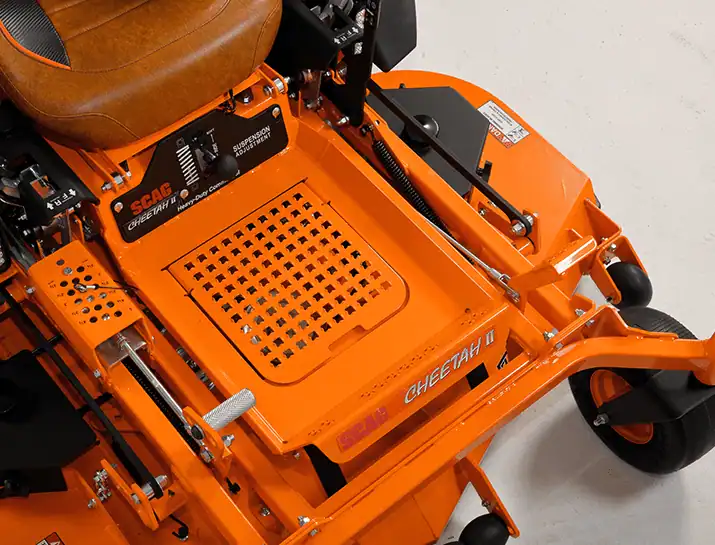

  • With five settings from soft to firm, the operator suspension system isolates the operator from the effects of rough terrain, providing unmatched comfort without sacrificing quality of cut. A coil-over shock provides effective suspension axtion right where it's needed, and only where it's needed . The 4-point, rubber iso-mounting provides even more shock absorption, maximizing you comfort, hour after hour.

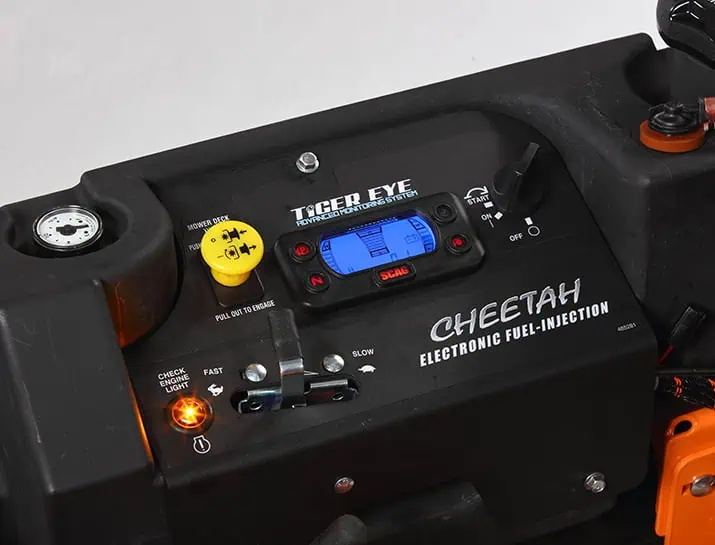

  • Depending on the mower model and engine selection, the "Tiger Eye" Advanced Monitoring Systems monitors a wide variety of systems in real time, giving you valuable information in just a glance, right from the operator's seat

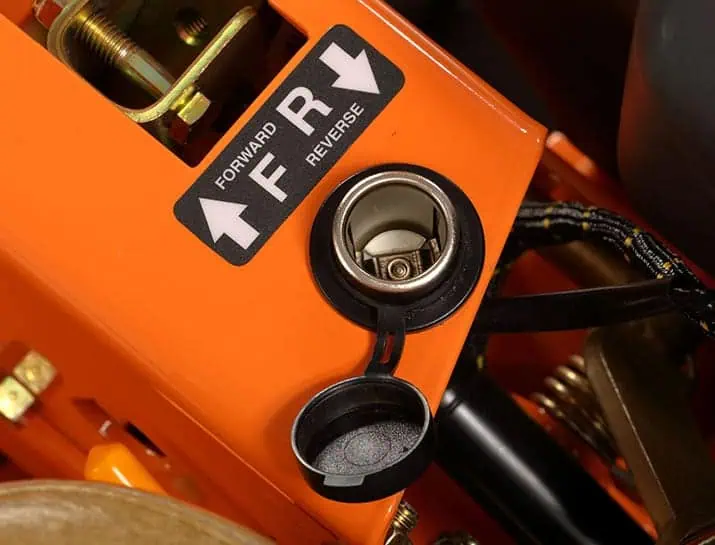

  • 12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.
  • Choose from a variety of proven V-twin engine options with huge horsepower to help you get the job done

Specifications

Engine Brand Kawasaki
Engine Model FX1000V EFI
Horsepower 38.5 hp
Displacement 999 cc
Fuel Tank Capacity 50 Litres (Dual 25L tanks)
Productivity, acres/day 23.7
Tyre Sizes 13″ x 6.5″ Flat-free Front
24″ x 12-12″ Rear
Seat Adjustable, padded with arm rests and 4-point iso-mounted mid-back mounted on operator-suspension platform
ROPS Standard, Folding
Waranty Period 5-YR Residential
2-YR Commercial
DRIVE SYSTEM
Type Hydro-Gear ZT5400 Transaxle.
Two-Speed
Internal Pump 16 cc
Internal Motor 21 cc
Forward Speed – Two-speed low/high range 19 km/h / 25 km/h
Reverse Speed 12 km/h
Parking Brake FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels
CUTTER DECK
Type Velocity Plus Deck
Construction Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.
Spindles Cast-iron housing with tapered roller bearings
Cutting Width 61″ / 155 cm
Cutting Height Adjustment 1.25″ to 5″ in .25″ increments
Deck Lift Adjustable foot-operated pedal
Blades 3 x 21″
Clutch / Blade Engagement ORGUA GT5 (350ft lb)
Adjustable Air Gap
Discharge Opening Rear-discharge
PRODUCT DIMENSIONS (approximate)
Length 87-91.25″ / 220.90 – 231.78 cm
Width (chute down) 73.5″ / 186.69 cm
Width (chute in transport position) 62.75″ / 159.39 cm
Height (ROPS folded) 49.5″ / 125.73 cm
Height (ROPS up) 67″ / 170.18 cm
Weight 625 kg



Call Us or E-mail Us for prices and to purchase
