TIGER CAT II 61″ Vanguard

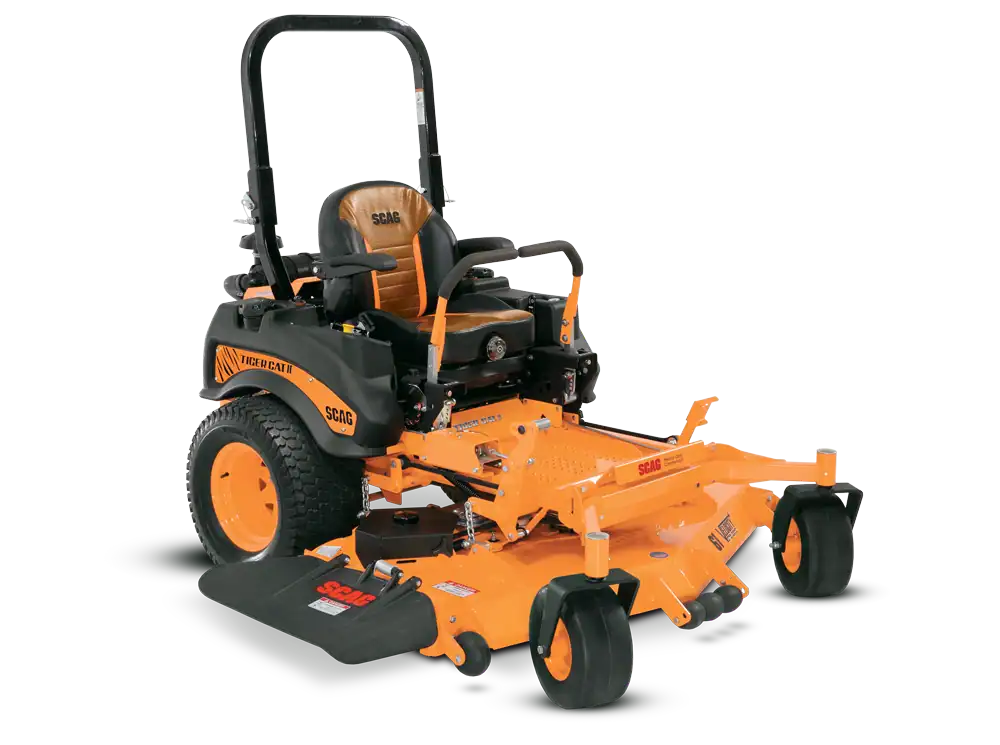

Tiger Cat II

CLAIM YOUR TERRITORY.

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat-II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly - putting you on the path toward increased profitability.

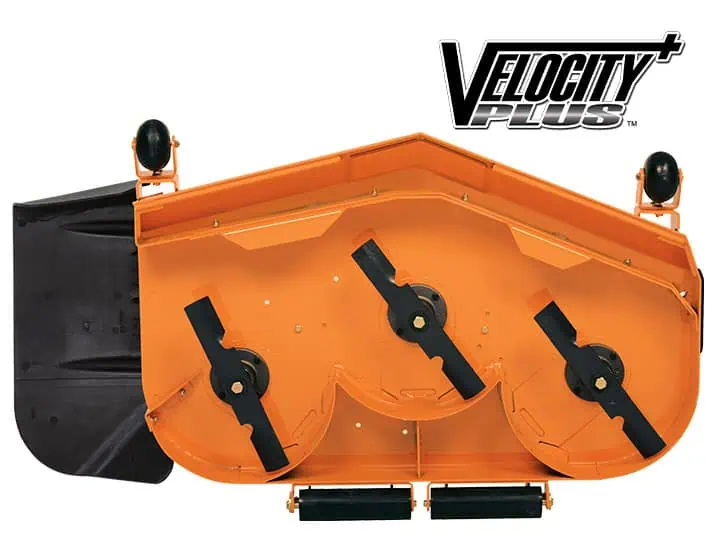

  • The envy of the industry, Velocity Plus Decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring papered roller bearings and a top-mounted grease fitting with a relief valve to prevent over greasing.

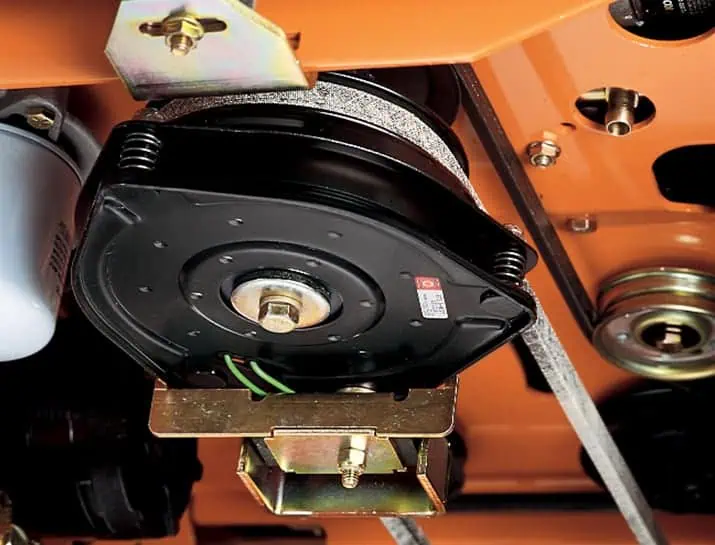

  • The Ogura GT3.5 PTO Clutch Brake provides excellent starting an stopping power for your cutting deck, 250 ft.ib. of holding strength, and an adjustable air gap for long life
  • Heavy-duty. single-tube,steel main-frame construction delivers superior strengh and ensures years of trouble-free service. The front caster-wheel weldents are replaceable.

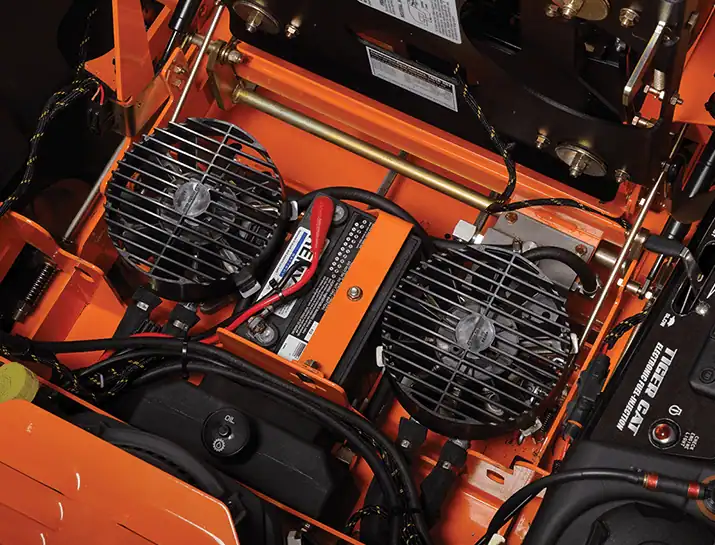

  • Dual Hydro-Gear pumps (12cc) wheel motoers delivering dependable power. Pump shock vaves ensure reliability and long life.Cooling fans help maintain safe operating temperatures.

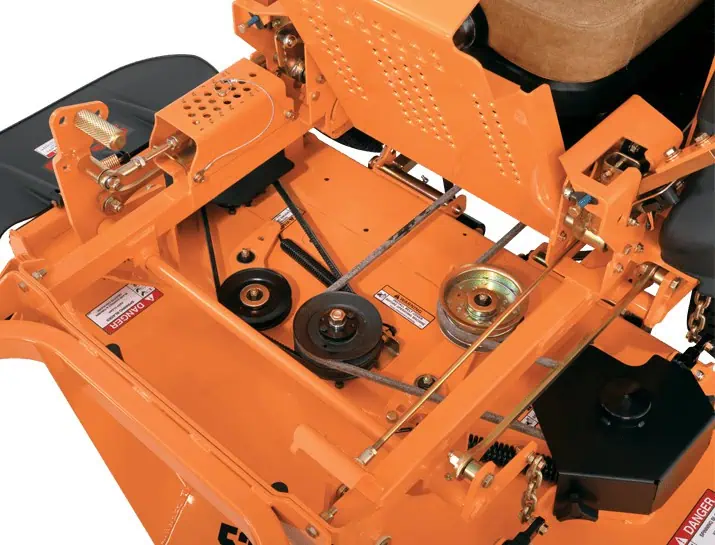

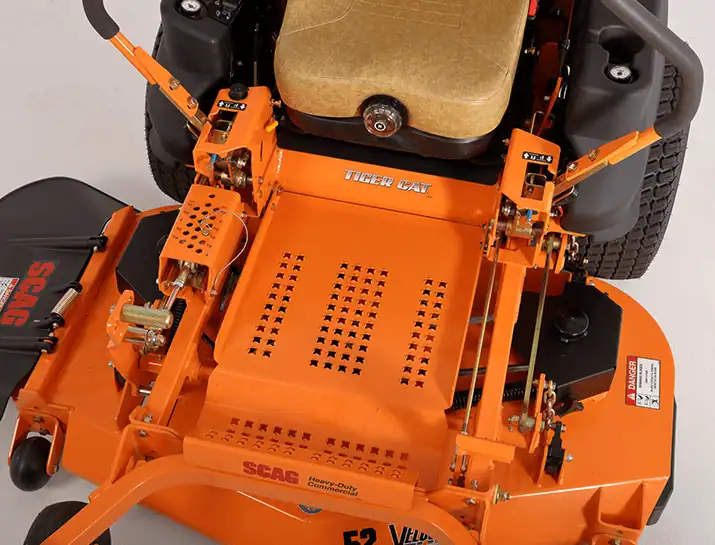

  • Flip up access panels,an unrestricted engine compartment,easy-to-reach grease Zerks and many more features make servicing the Tiger Cat simple, so you can be in the shop less and on the job more.

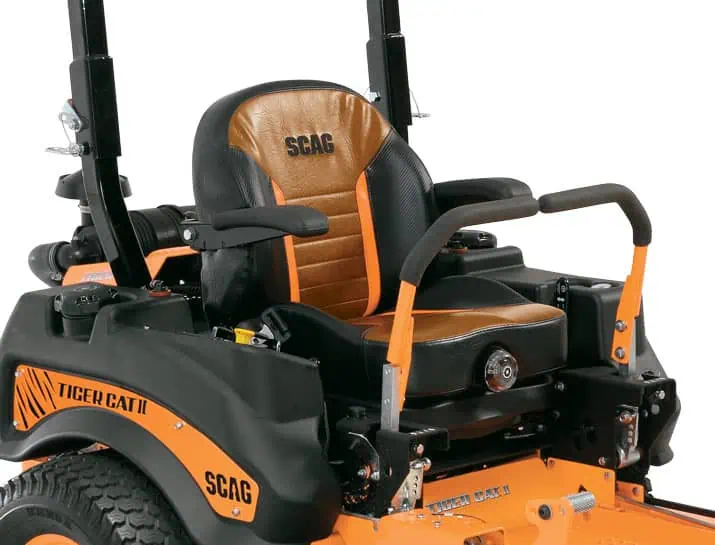

  • Torsion-spring suspension seat adjust to each operator's weight to provide superior comfort. Seat features full padding, forward and rearward adjustment, a high back, adjustable armrests and adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing you comfort, hour after hour.

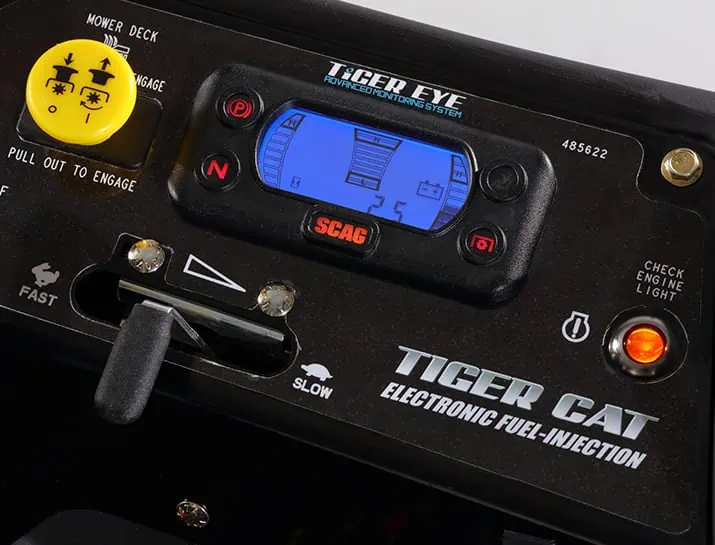

  • Depending on the mower model and engine selection, the "Tiger Eye" Advanced Monitoring Systems monitors a wide variety of systems in real time, giving you valuable information in just a glance, right from the operator's seat

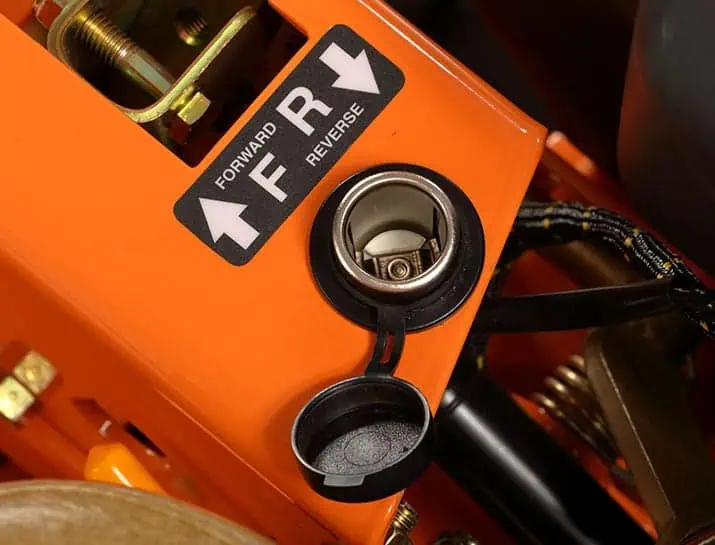

  • 12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.

Specifications

Engine Brand Briggs & Stratton Vanguard
Engine Model 36BV (6137)
Horsepower 36 hp
Displacement 896 cc
Fuel Tank Capacity 36 Litres (Dual 18L tanks)
Productivity, acres/day 23.7
Tyre Sizes 13″ x 6-1/2″ Flat-free Front
24″ x 12-12″ Rear
Seat Adjustable, padded torsion-spring suspension seat with arm rests
ROPS Standard, Folding
Waranty Period 5-YR Residential
2-YR Commercial
DRIVE SYSTEM
Type Dual Pump and Motor
Pumps Hydro-Gear 12 cc
Motors Parker 14.5 ci
Forward Speed 19 km/h
Reverse Speed 8 km/h
Parking Brake FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels
CUTTER DECK
Type Velocity Plus Deck
Construction Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.
Spindles Cast-iron housing with tapered roller bearings
Cutting Width 61″ / 155 cm
Cutting Height Adjustment 1″ to 5″ in .25″ increments
Deck Lift Foot-operated pedal
Blades 3 x 21″
Clutch / Blade Engagement ORGUA GT3.5 (250ft lb)
Adjustable Air Gap
Discharge Opening Side-discharge
PRODUCT DIMENSIONS (approximate)
Length 80″ / 203.2 cm
Width (chute down) 73.5″ / 186.69 cm
Width (chute in transport position) 62.75″ / 159.39 cm
Height (ROPS folded) 46.75″ / 118.75 cm
Height (ROPS up) 67.25″ / 170.82 cm
Weight 579 kg
Call Us or E-mail Us for prices and to purchase
