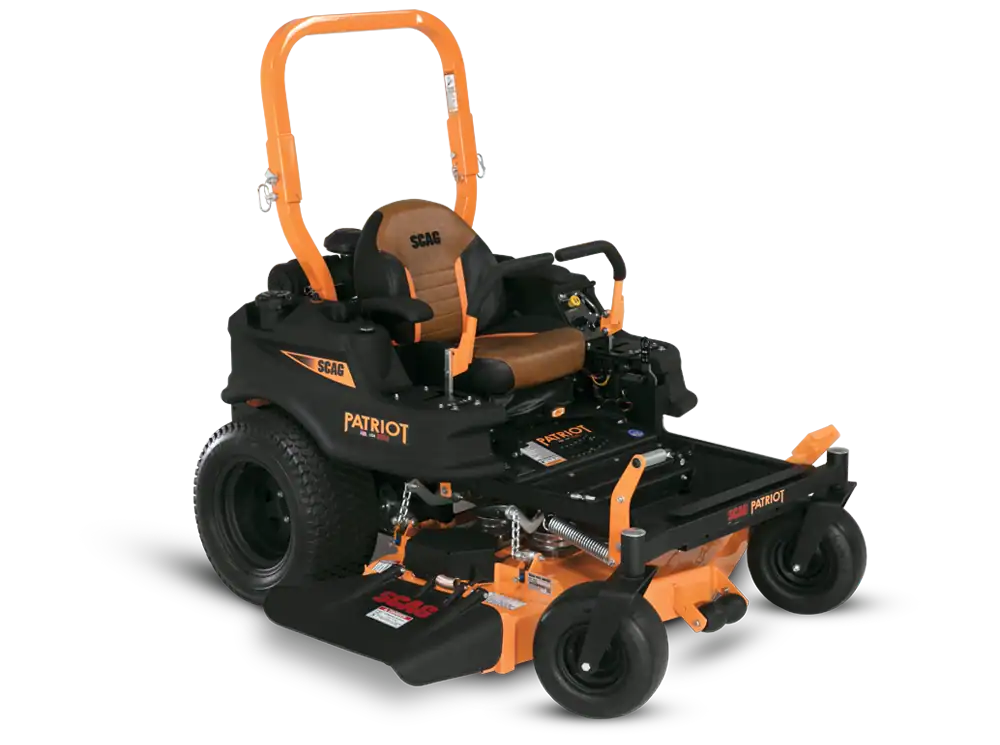

PATRIOT 52″
PATRIOT 52″
Patriot
MAKE A STATEMENT.
Built to deliver low-maintenance and high-performance operation, the Patriot makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers — and their neighbours — saluting your handiwork.

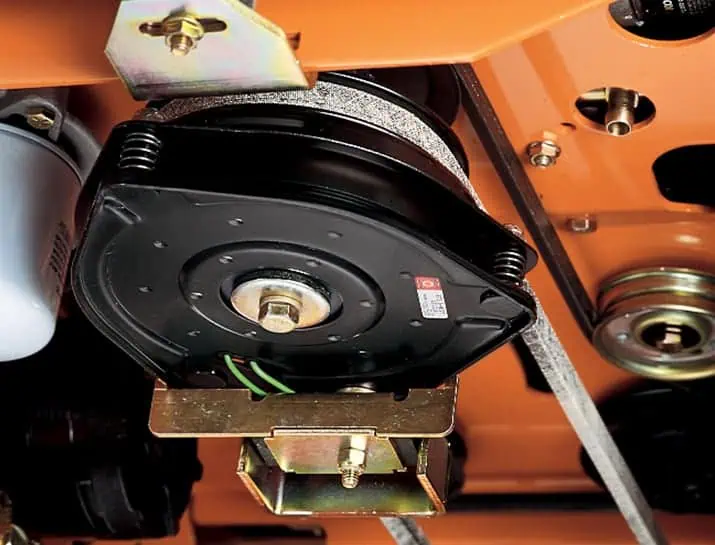

- The Ogura GT2 PTO Clutch Brake provides excellent starting an stopping power for your cutting deck, 108ft.ib. of holding strength, and an adjustable air gap for long life

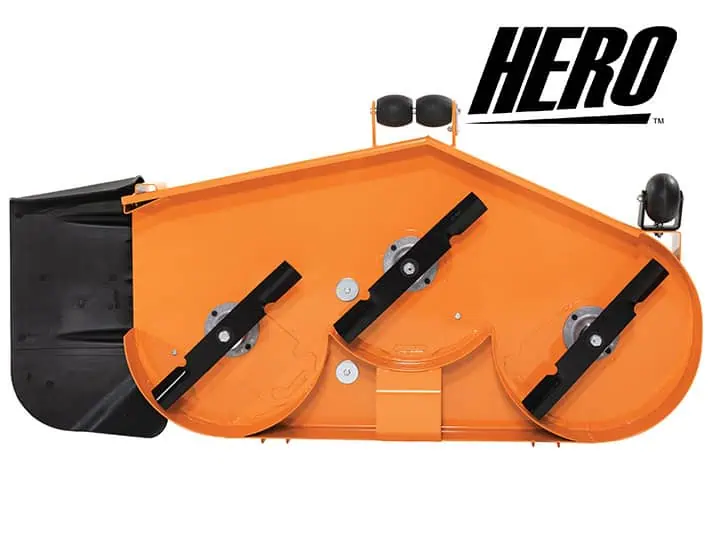

- Heavy duty Hero Cutter Deck design handles lots of grass at higher speeds.heavy-duty,aluminum,sealed balled bearing, blade-drive spindles provide reliable proformance season after season.
- Tubular steel main frame delivers unmatched strengh and longevity.
- The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth,solid power to drive wheels.Large cooling fans keep temperatures low and extend component life
- Fewer gease points increase operator convenience and ease-of-ownership.

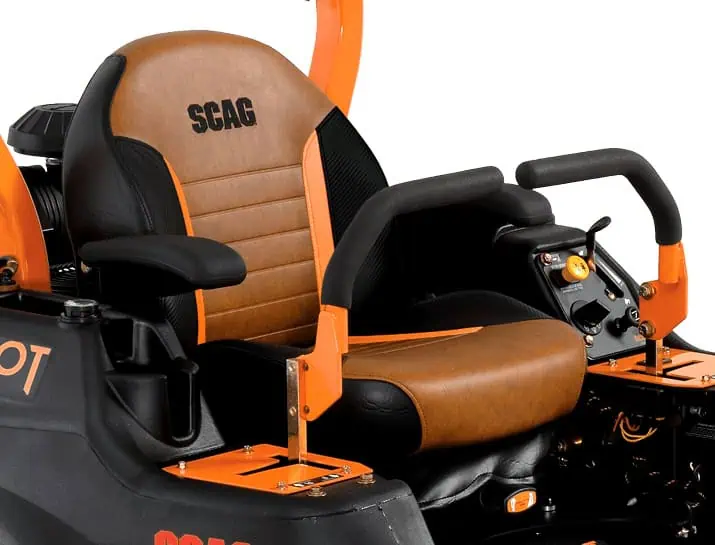

- The torsion-spring suspension seat adjusts to each operator's weight,is contoured and features armrests,all to provide superior comfort.

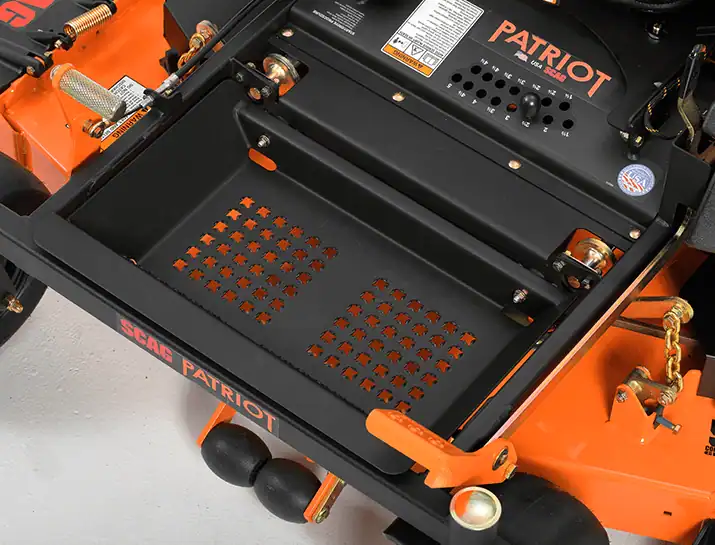

- Pierced, extuded-steel foot plate is rubber iso-mounted for inhanced comfort.

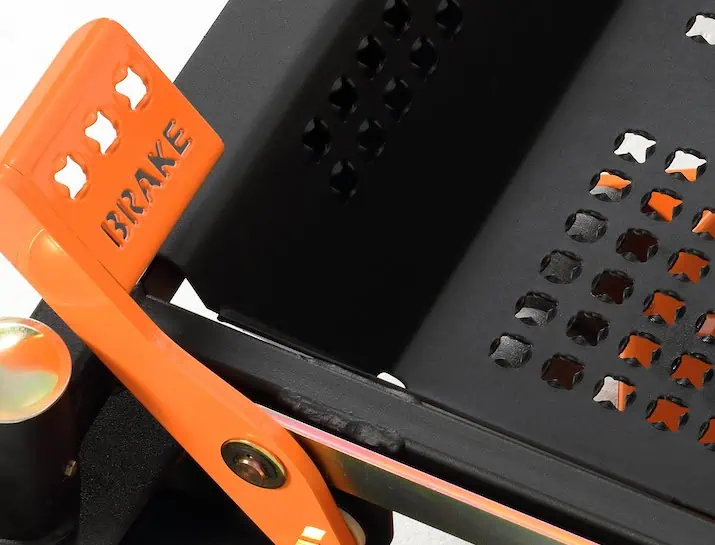

- Foot-operated parking brake activates a disc-brake system,allowing the parking brake to be engaged without taking your hands off the steering controls.Ausco disc brakes provide reliable proformance.
- The ROPS provides a protective zone around the operator,reducing the risk of serios injury or fatality during a rollover incident. When used in conjustion with a seat belt, it ensures the operator remains within the protective zone.
Specifications
| Engine Brand | Kawasaki |
| Engine Model | FX691V |
| Horsepower | 22 hp |
| Displacement | 726 cc |
| Fuel Tank Capacity | 25 Litres |
| Productivity, acres/day | 20.2 |
| Tyre Sizes | 13″ x 6-1/2″ Flat-free Front |
| 22″ x 10.5-12″ Rear | |
| Seat | Adjustable, padded torsion-spring suspension seat with arm rests |
| ROPS | Standard, Folding |
| Waranty Period | 5-YR Residential |
| 2-YR Commercial | |
| DRIVE SYSTEM | |
| Type | HYDRO GEAR ZT-3100 |
| Internal Pumps | 10 cc |
| Internal Motor | 16 cc |
| Forward Speed | 13.7 km/h |
| Reverse Speed | 8 km/h |
| Parking Brake | HAND LEVER ACTIVATED linkage to brakes on both rear wheels |
| CUTTER DECK | |
| Type | Hero Deck |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Cutting Width | 52″ / 132 cm |
| Cutting Height Adjustment | 1.5″ to 5″ in .25″ increments |
| Deck Lift | Foot-operated pedal |
| Blades | 3 x 18″ |
| Clutch / Blade Engagement | ORGUA GT2 (108ft lb). |
| Adjustable Air Gap | |
| Discharge Opening | Side-discharge |
| PRODUCT DIMENSIONS (approximate) | |
| Length | 73″ / 185.42 cm |
| Width (chute down) | 64.5″ / 163.83 cm |
| Width (chute in transport position) | 53″ / 134.62 cm |
| Height (ROPS folded) | 46.5″ / 118.11 cm |
| Height (ROPS up) | 61″ / 155 cm |
| Weight | 413 kg |
