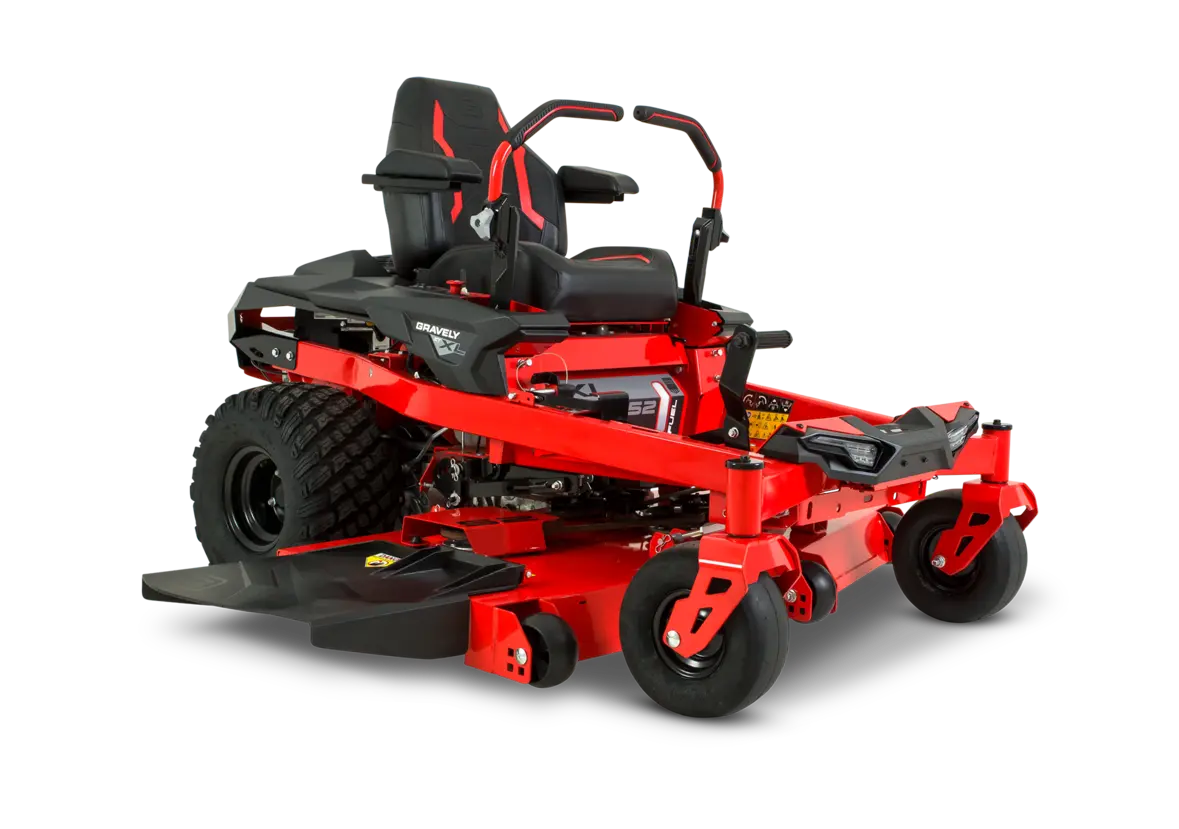

Gravely ZT XL 52″ Zero-Turn Mower

Gravely ZT XL 52″ Zero-Turn Mower

Description
Specifications

The ZT XL 52″ is built for big jobs. This residential unit is packed with heavy-duty features that make users forget they’re not on a commercial mower. Designed with a fully welded tubular frame for a strong, stable backbone, Gravely’s legendary performance shines through.

This unit’s Hydro-Gear ZT-2800 transaxles provide increased torque, a smoother ride, and longer life. Our 4.5 inch deep fabricated deck features an optimised airflow design to produce best in class cut quality and discharge performance. Your lawn is sure to be the envy of your neighbours with Gravely’s legendary quality.

Specifications

Warranty Information

Domestic Warranty	4 Year / 400 Hour Domestic Warranty
Commercial Warranty	4 Year / 400 Hour Commercial Warranty

Miscellaneous

Blade(s)	3
USB Port	Yes

Dimension Specs

Dry Weight	319.7 kg
Height	1194 mm
Width	1412mm With chute up
Overall Length	1892 mm

Zero Turn Mower Specs

Ground Speed – Forward	Up To 11.3 km/h
Brakes	Steering Arm Integrated Park Brake
Seat	Bolstered High Back Seat With Arm Rests
Hour Meter	Standard
ROPS	ROPS Not Supplied With Units
Cup Holder	Yes
Deck System	Fabricated X-Factor®
Deck Lift	Foot Operated
Deck Construction	11 Gauge Fabricated
Blade Tip Speed	18,000 FPM
Spindles	Forged Aluminium with sealed ball bearings
Drive System	Hydro-Gear® ZT-2800® Transaxles

Engine and Fuel Specs

Engine	Kawasaki FR691V V-Twin
Engine (cc)	726 cc
HP	23 hp
Fuel Capacity	13.2 L

Mowing Deck Specs

Kit – Mulch

Available Optional Accessory

Cutting Dimensions

Cutting Widths	52″ (1320 mm) Cut Side Discharge
Cutting Height(s)	13 Cutting Positions / 38 mm – 114 mm
