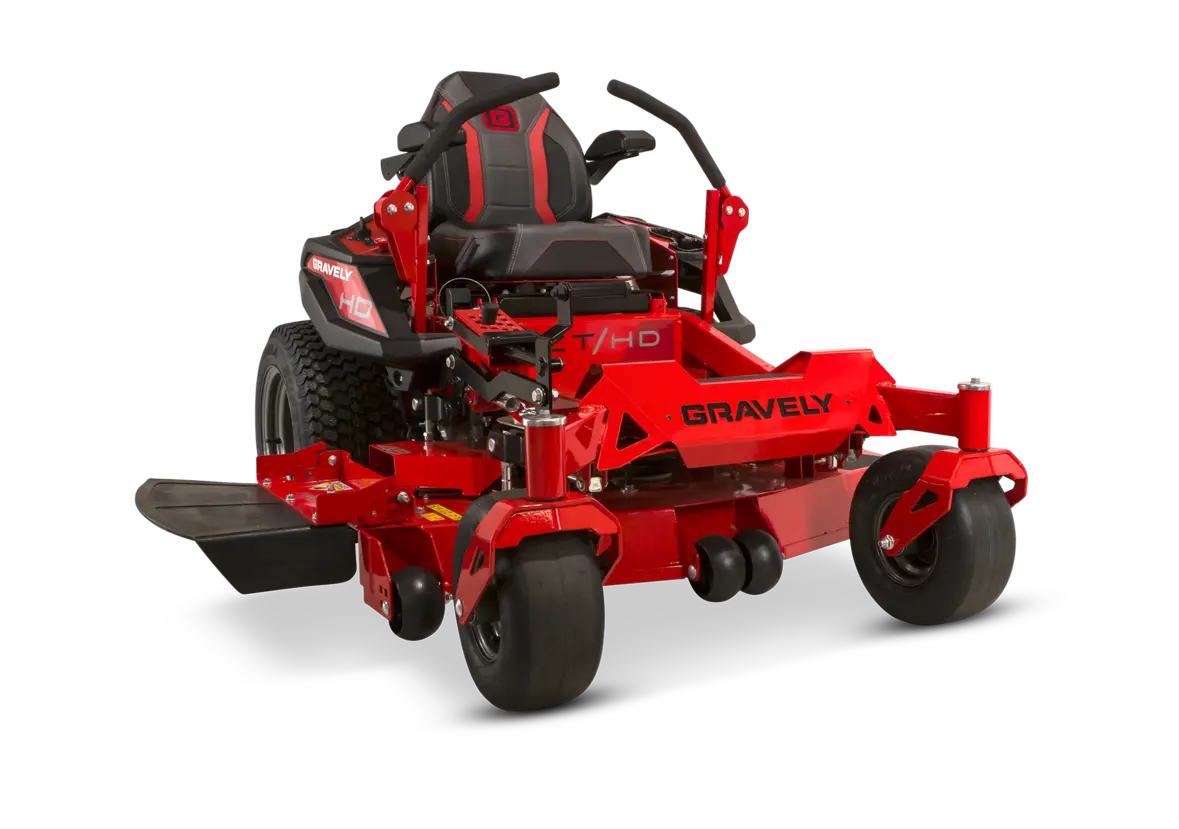

Gravely ZT HD 48″ Zero Turn Mower
Gravely ZT HD 48″ Zero Turn Mower
The ZT HD 48″ brings more style, comfort, speed, and precision to the game. It’s no secret that this unit is one of the top in its class. The ZT HD, although a residential unit, gives commercial units a run for their money with its high-quality features. Featuring 15 cutting positions ranging from 1.5 inches to 5 inches, your lawn will look its best all year round.
This unit’s X-Factor 3 Deck has been completely redesigned to disperse grass better during mowing sessions. This highly efficient engineered deck has been constructed from 10-gauge steel to deliver years of solid performance. This unit also has a superior and more robust welded tubular frame, giving you integrity and quality all in one.
Specifications
Warranty Information
| Domestic Warranty | 4 Year / 500 Hour |
| Commercial Warranty | 4 Year / 500 Hour |
Miscellaneous
| Blade(s) | 3 |
Dimension Specs
| Dry Weight | 374.2 kg |
| Height | 1194 mm |
| Width | 1290 mm With Chute Up |
| Overall Length | 2007 mm |
Zero Turn Mower Specs
| Ground Speed – Forward | Up To 12.8 km/h |
| Brakes | Hand Park Brake |
| Seat | High Back Comfort W/ Seat Isolation & Padded Arm Rests |
| Hour Meter | Standard |
| ROPS | Optional Accessory |
| Cup Holder | Yes |
| Deck System | Fabricated X-Factor® 3 |
| Deck Lift | Foot Operated |
| Deck Construction | Fabricated 10 Gauge |
| Blade Tip Speed | 18,000 FPM |
| Spindles | Forged Aluminium with sealed ball bearings |
| Drive System | Hydro-Gear ZT-3100 Transaxles |
Engine and Fuel Specs
| Engine | Kawasaki FR691V V-Twin |
| Engine (cc) | 726 cc |
| HP | 23 HP |
| Fuel Capacity | 18.8 L |
Mowing Deck Specs
| Kit – Mulch | Available Optional Accessory |
Cutting Dimensions
| Cutting Widths | 48″ (1219mm) cut side discharge |
| Cutting Height(s) | 15 Cutting Positions / 38 mm – 127 mm |
