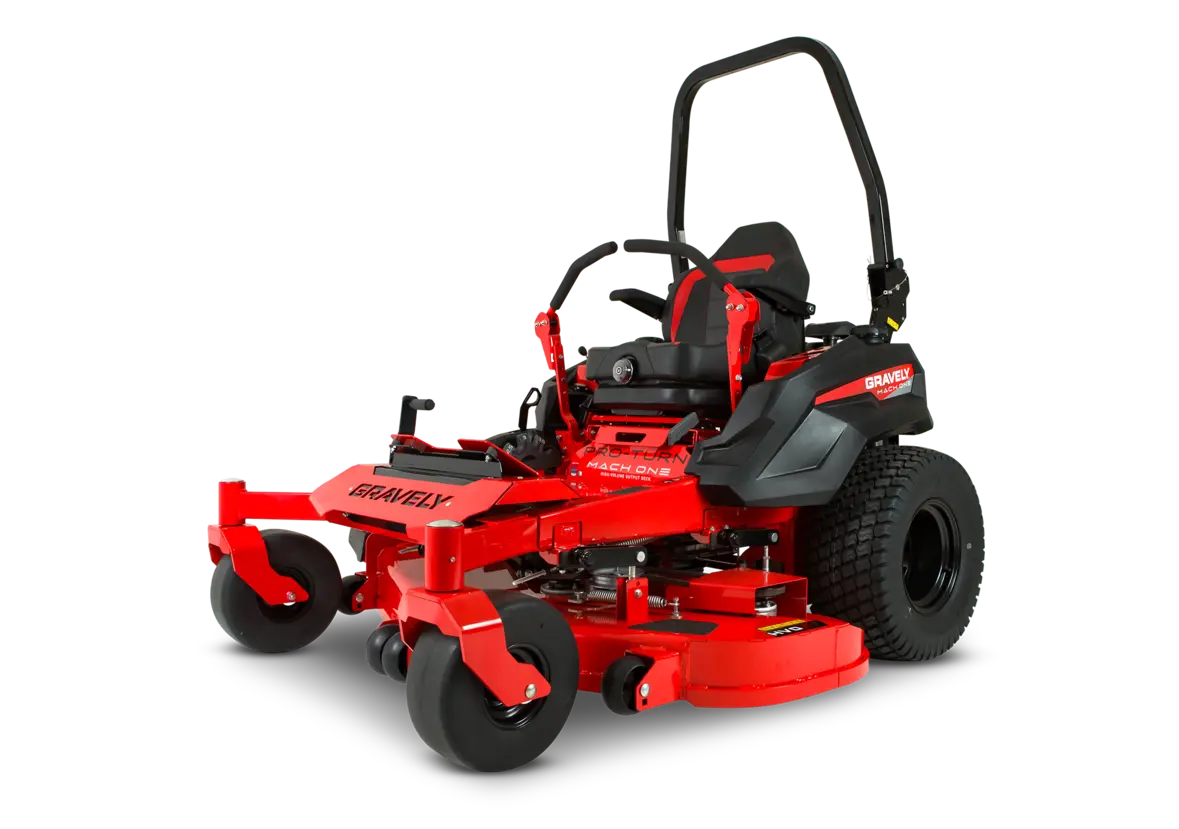

Gravely Pro-Turn MACH ONE 60″ EFI Zero Turn, High Grass Mower
Gravely Pro-Turn MACH ONE 60″ EFI Zero Turn, High Grass Mower
ProTurn MACH ONE - WHERE OVERGROWN GRASS BECOMES JUST GRASS
Whether it’s thick wet conditions, overgrown properties, or stalky grasses in its path, the Mach One easily cuts it down to size. Its High-Volume Output deck with tunnel chamber directs clippings away from the blades after they’re cut to keep them from bogging down.
Specifications
Warranty Information
| Domestic Warranty | 5 Years / 1250 Hour Domestic Warranty |
| Commercial Warranty | 5 Years / 1250 Hour Commercial Warranty |
| Hire/Rental Warranty | 90 Day Hire / Rental Warranty |
Miscellaneous
| Blade(s) | 3 x Bar blades |
Dimension Specs
| Dry Weight | 681 kg |
| Height | 1930 mm ROPS up, 1213 mm ROPS down |
| Width | 1600 mm With chute up |
| Overall Length | 2190 mm |
Zero Turn Mower Specs
| Ground Speed – Forward | Up to 21 km/h |
| Ground Speed – Reverse | Up to 9.5 km/h |
| Brakes | Hand brake |
| Seat | High back comfort with suspension and padded armrests |
| Construction | STEEL Tubular frame welded |
| ROPS | Foldable ROPS Standard |
| Controls | Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes |
| Cup Holder | Yes |
| Deck System | X-Factor® 3 Fabricated |
| Deck Lift | Foot-operated |
| Deck Construction | Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement |
| Blade Tip Speed | 18633 FPM |
| Blade Drive | V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life |
| Spindles | Forged Aluminium with sealed ball bearings |
| Drive System | 16cc Parker HTG transmission |
| Discharge Chute | High density, rubberised |
| Steering | Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls. |
Engine and Fuel Specs
| Engine | Kawasaki FX1000V EFI |
| Type | Air cooled, 90-degree V-twin, EFI Petrol Engine |
| Engine (cc) | 999 cc |
| Horsepower | 38.5 hp |
| Cooling | Air cooled flywheel fan |
| Fuel | Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications) |
| Fuel Filter | Replaceable, automotive-type |
| Oil Filter | Spin-on engine oil filter / Total oil capacity 1.9 litres with filter |
| Air Filter | Multi-Stage remote canister heavy duty air filter system |
| Fuel Capacity | 61L |
| Governor | Mechanical |
Safety Features
| Safety Features | Operator presence system connected to clutch, seat, and park brakes |
Hydrostatic Drive System Specs
| Drive Cooling | Transmission mounted fans |
Cutting Dimensions
| Cutting Widths | 60″ (1524 mm) cut side discharge. |
| Cutting Height(s) | 25 mm – 140 mm |
