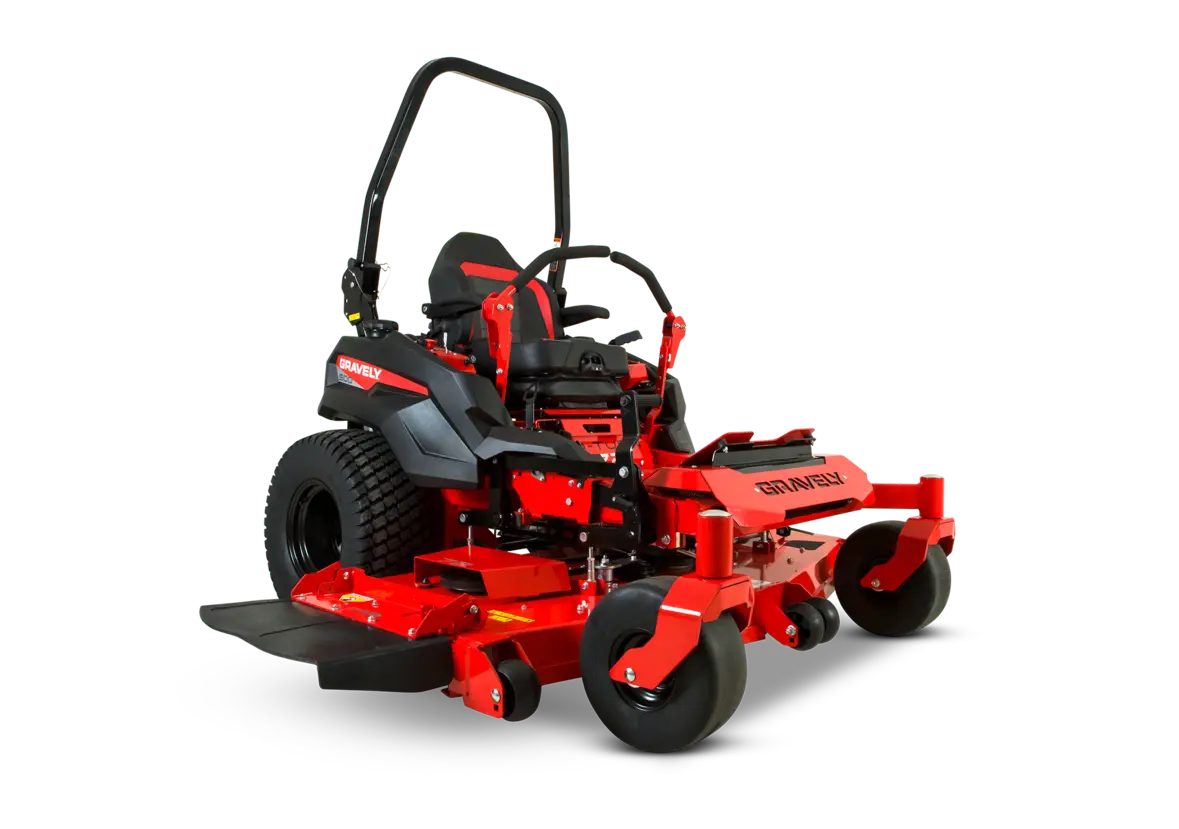

Gravely Pro-Turn 572 EFI Zero-Turn Mowers

Gravely Pro-Turn 572 EFI Zero-Turn Mowers

Gravely Pro-Turn 572 EFI Zero-Turn Mowers

This is the Pro-Turn 500!!

A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the PRO-TURN-500 the better choice.

Specifications

Warranty Information

Domestic Warranty 5 Year / 1500 Hour Domestic Warranty
Commercial Warranty 5 Year / 1500 Hour Commercial Warranty
Hire/Rental Warranty 90 Day Hire / Rental Warranty

Miscellaneous

Blade(s) 3 x Bar blades

Dimension Specs

Dry Weight 716.6 kg
Height 1930 mm ROPS up, 1214 mm ROPS down
Width 1905 mm With chute up
Overall Length 2133 mm

Zero Turn Mower Specs

Ground Speed – Forward Up To 24.1 km/h
Ground Speed – Reverse Up to 9.6 km/h
Brakes Hand brake
Seat High back comfort with Air Ride suspension and padded armrests
Construction STEEL Tubular frame welded
Hour Meter Standard
ROPS Foldable ROPS Standard
Controls Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder Yes
Deck System X-Factor® 3 Fabricated
Deck Lift Foot-operated
Deck Construction Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement
Blade Tip Speed 18000 FPM
Blade Drive V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles Forged Aluminium with sealed ball bearings
Drive System Parker HTG 16cc Dual Hydrostatic Transmission
Discharge Chute High density, rubberised
Steering Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.

Engine and Fuel Specs

Engine Kawasaki FX1000V EFI
Type Air cooled, 90-degree V-twin, EFI engine
Engine (cc) 999 cc
Horsepower 38.5 hp
Cooling Air cooled flywheel fan
Fuel Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter Replaceable, automotive-type
Oil Filter Spin-on engine oil filter / Total oil capacity 1.9 litres with filter
Air Filter Multi-Stage remote canister heavy duty air filter system
Fuel Capacity 47.3 L
Governor EFI

Safety Features

Safety Features Operator presence system connected to clutch, seat, and park brakes

Hydrostatic Drive System Specs

Drive Cooling Transmission mounted fans

Cutting Dimensions

Cutting Widths 72″ (1828.8 mm) cut side discharge.
Cutting Height(s) 25 mm – 140 mm
Call Us or E-mail Us for prices and to purchase
