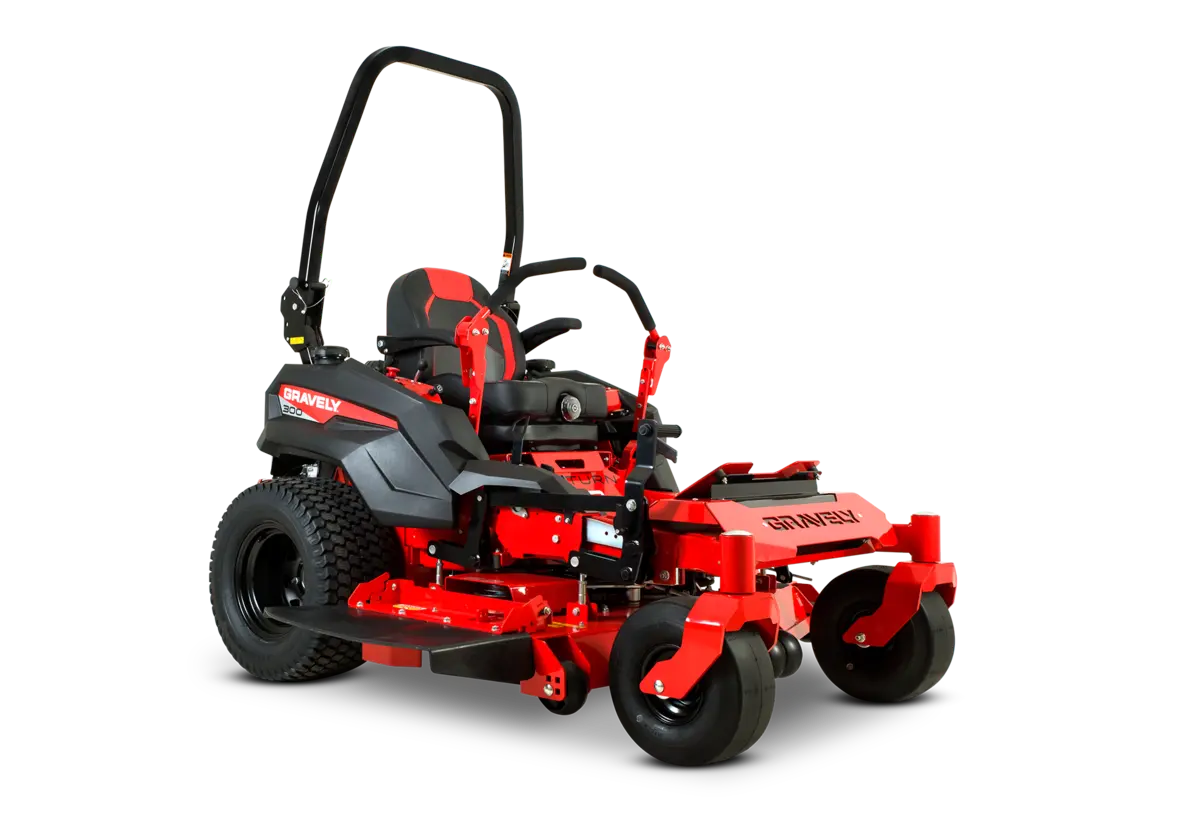

Gravely Pro-Turn 352 Zero-Turn Mowe

Gravely Pro-Turn 352 Zero-Turn Mowe

Gravely Pro-Turn 352 Zero-Turn Mowe

Introducing the Pro-Turn® 300. A newly designed, hard-working mower built to keep you comfortable from dawn to dusk. This is mowing to the next level thanks to its innovative features and superior cutting performance.

Specifications

Warranty Information

Domestic Warranty 5 Year / 1250 Hour Domestic Warranty
Commercial Warranty 5 Year / 1250 Hour Commercial Warranty

Miscellaneous

Blade(s) 3 x Bar blades

Dimension Specs

Dry Weight 560.1 kg
Height ROPS up 1930.4 mm, ROPS down 1214.1 mm
Width 1397 mm With chute up
Overall Length 2108 mm

Zero Turn Mower Specs

Ground Speed – Forward Up To 17.7 km/h
Brakes Hand brake
Seat High back comfort with suspension and padded armrests
Construction STEEL Tubular frame welded
ROPS Foldable ROPS Standard
Controls Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder Yes
Deck System X-Factor® 3 Fabricated
Deck Lift Foot-operated
Deck Construction Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement
Blade Tip Speed 18000 FPM
Blade Drive V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles Forged Aluminium with sealed ball bearings
Drive System Parker HTJ 12cc Dual Hydrostatic Transmission
Discharge Chute High density, rubberised
Steering Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.

Engine and Fuel Specs

Engine Kawasaki FX801V
Type Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc) 852 cc
Horsepower 25.5 hp
Cooling Air cooled flywheel fan
Fuel Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter Replaceable, automotive-type
Oil Filter Spin-on engine oil filter / Total oil capacity 2.1 litres with filter
Air Filter Multi-Stage remote canister heavy duty air filter system
Fuel Capacity 47.3 L
Governor Mechanical

Safety Features

Safety Features Operator presence system connected to clutch, seat, and park brakes.

Hydrostatic Drive System Specs

Drive Cooling Transmission mounted fans

Cutting Dimensions

Cutting Widths 52″ (1320 mm) cut side discharge.
Cutting Height(s) 25 mm – 139 mm
Call Us or E-mail Us for prices and to purchase
