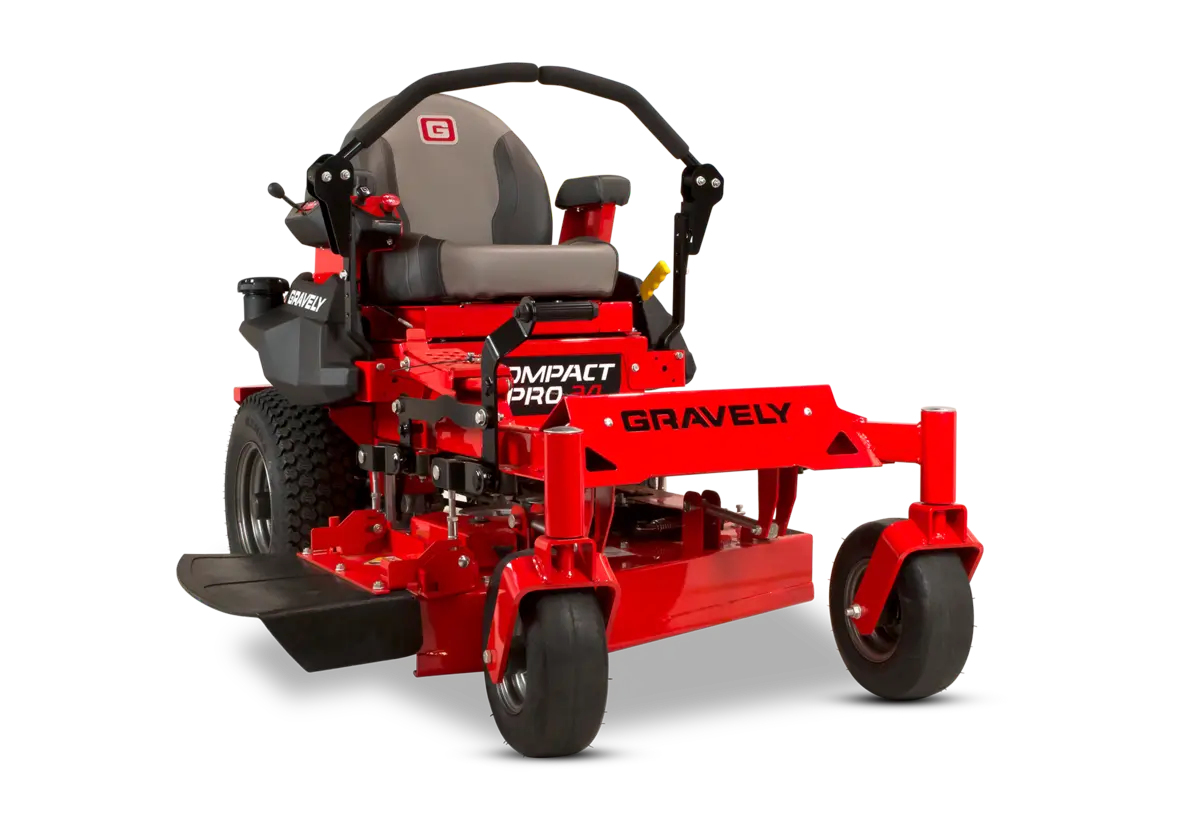

Gravely Compact Pro 34″ Zero-Turn Mower
Gravely Compact Pro 34″ Zero-Turn Mower
The Compact Pro 34" is the perfect compact solution that takes you where bigger mowers can't, like through gates as narrow as 36". But this smaller, nimbler ride is still loaded with big-time features. Powerful, durable, with maximum versatility. This is full commercial strength brought down to size.
Specifications
Warranty Information
| Domestic Warranty | 4 Year / 750 Hour Domestic Warranty |
| Commercial Warranty | 4 Year / 750 Hour Commercial Warranty |
Miscellaneous
| Blade(s) | 2 x Bar blades |
Dimension Specs
| Dry Weight | 334.3 kg |
| Height | 1155 mm |
| Width | 911.8 mm With chute up |
| Length | 75″ (1905 mm) |
Zero Turn Mower Specs
| Ground Speed – Forward | Up to 11.2 km/h |
| Brakes | Hand brake |
| Seat | High back with EVC suspension |
| Construction | Frame 1″ x 3″ STEEL Tubular frame welded |
| ROPS | ROPS not supplied with unit |
| Controls | Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes |
| Cup Holder | Yes |
| Deck Lift | Foot-operated |
| Deck Construction | Fabricated 10 Gauge w’ 10 Gauge spindle reinforcement |
| Blade Tip Speed | 17250 FPM |
| Blade Drive | V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life |
| Spindles | Forged Aluminium with sealed ball bearings |
| Drive System | V-belt drive from engine crankshaft |
| Discharge Chute | High density, rubberised |
| Steering | Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls. |
Engine and Fuel Specs
| Engine | Kawasaki FX481V |
| Engine (cc) | 603 cc |
| Horsepower | 15.5 hp |
| Cooling | Air cooled flywheel fan |
| Fuel | Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications) |
| Fuel Filter | Replaceable, automotive-type |
| Oil Filter | Spin-on engine oil filter / Total oil capacity 1.7 litres with filter |
| Air Filter | Multi-Stage remote canister heavy duty air filter system |
| Fuel Capacity | 27.1 L |
| Governor | Mechanical |
Safety Features
| Safety Features | Operator presence system connected to clutch, seat, and park brakes |
Hydrostatic Drive System Specs
| Hydrostatic Drive System | Dual hydrostatic |
| Drive Cooling | Transmission mounted fans |
| Pumps | Hydro Gear ZT-3100 |
Cutting Dimensions
| Cutting Widths | 34″ (863 mm) cut side discharge. |
| Cutting Height(s) | 25 mm – 127 mm |
