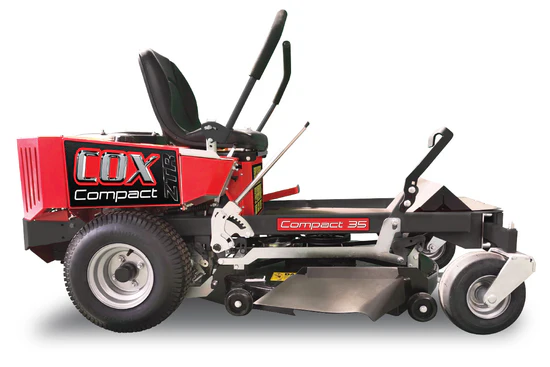

Compact ZTR 35
Compact ZTR 35
At last, a Zero Turn mower that excels at both taming thick grass and nurturing your lawns! The Compact ZTR 35 effortlessly navigates through standard backyard entrances, measuring a mere 940mm in width (35″ Model).Enjoy the exceptional cutting performance akin to our renowned COX ride-on mower range, enhanced by the convenience of lever-controlled steering that practically lets you pivot in place. Our Compact ZTR 35 will easily fit through most backyard entrances, as it measures only 940mm wide (35" model)
Specifications
| ENGINE | |
| CZ24C35 | COX Compact 24hp 35″ V Twin, ZT-2200 |
| CZ24C42 | COX Cruiser 24hp 42″ V Twin, ZT-3100 |
| CZ26C48 | COX Cruiser 26hp 48″ V Twin EFI, ZT-3100 |
| CZ26C52 | COX Cruiser 26hp 52″ V Twin EFI, ZT-3100 |
| Cylinders | V-Twin |
| Displacement | 680cc |
| Oil Capacity | 2.0LT |
| Engine Warranty | 3 Years COX Conditional |
| DRIVE | |
| Drive Model | Tuff Torq™ K46 |
| Drive Warranty | 2 Years Conditional |
| Ground Speed | FWD 0-10KPH/REV 0-6KPH |
| CUTTING SYSTEM | |
| Cutter Deck Width | 35″ (890mm) |
| Blade Engagement | Ogura Electromagnetic Clutch |
| Cutter Belt Type | Premium B-Section |
| Height Range | 20mm-100mm |
| Blade Type | Heavy Duty Swing Back |
| CHASSIS | |
| Tyres | 11x400x5 (F) – 18×6.50-8 (R) |
| Seat | Premium High Back Seat |
| Seat Adjustment | Fingertip Adjustment |
| Hour Meter | Standard |
| Construction | Fabricated Steel |
| DIMENSIONS | |
| Length | 1900mm |
| Width | 940mm |
| Weight | 239kg |
| Warranty | 5 Years Conditional |
